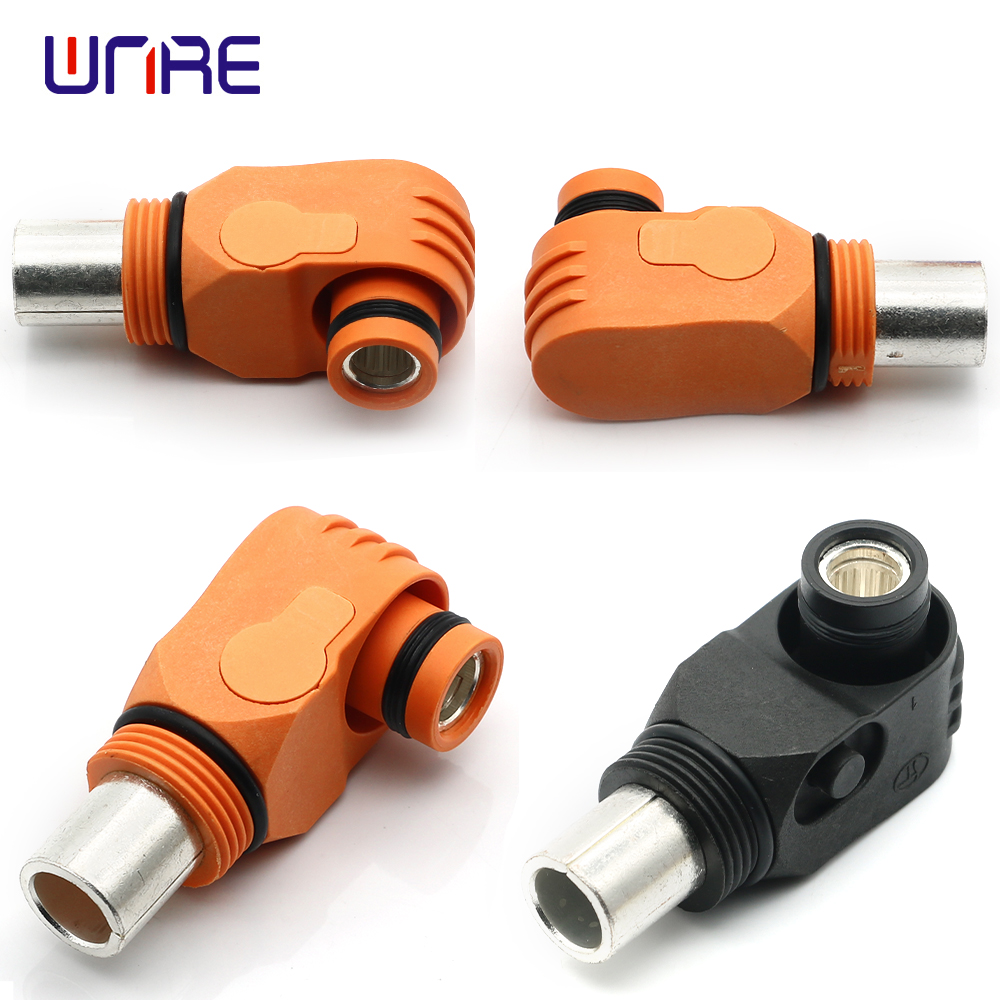

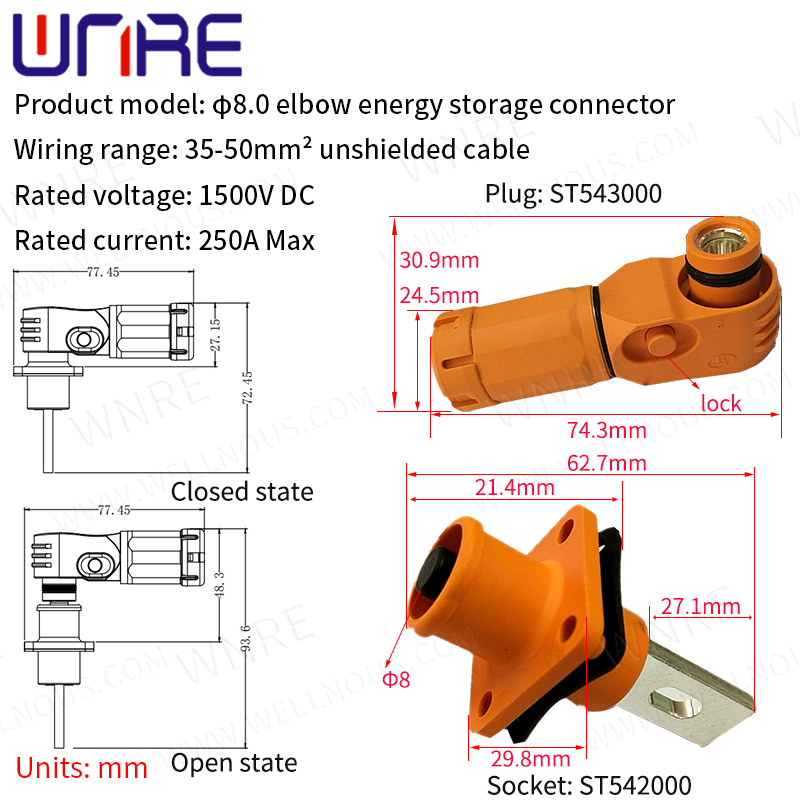

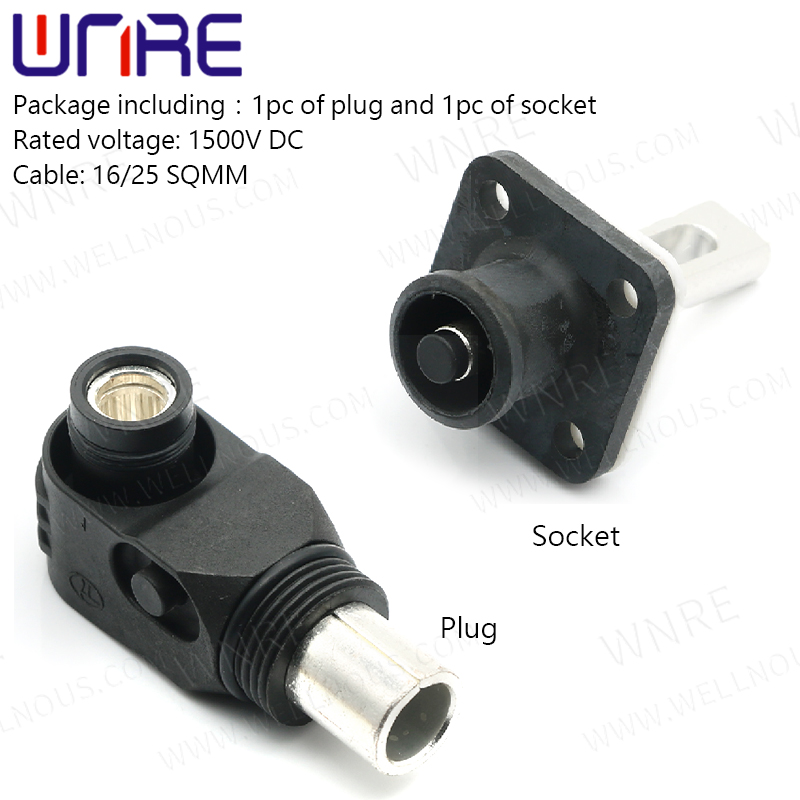

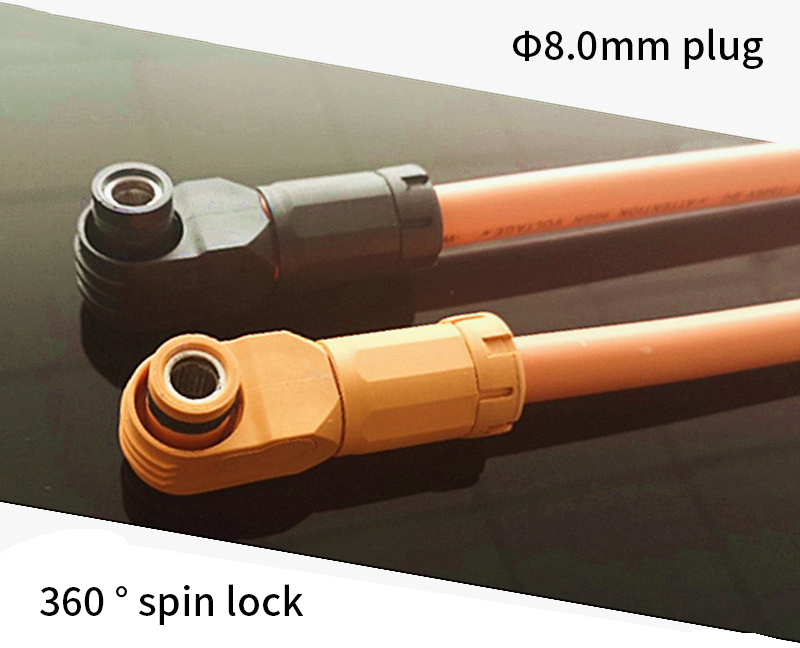

Φ8.0mm Plug Socket Single Core Right Angle Energy Storage Connector Black/Orange High Current HV Connector For New Energy Electric Vehicle

Short Description:

Wire size:35/50mm²,unshielded

IP67 (mated)

Anti-touch: IP2XB

Operating temperature: -40 ℃ ~ 125 ℃


Product Detail

Product Tags

Wire size:35/50mm²,unshielded

IP67 (mated)

Anti-touch: IP2XB

Operating temperature: -40 ℃ ~ 125 ℃

Life: ≥500 times

Operation force: <100N

Rated Voltage: 1500V DC

Rated current: Max. 200A

Insulation impedance: > 2000 MΩ

Insulation voltage: 3000V AC





储能8.0插头配件8.0储能通孔橙色8.0储能通孔黑色储能8.0插头储能8.0插座通孔英-储能连接器8.0插头英-储能连接器8.0插座储能∅8mm弯插连接器123包装-8.0插头包装-8.0插座

Packing & Delivery

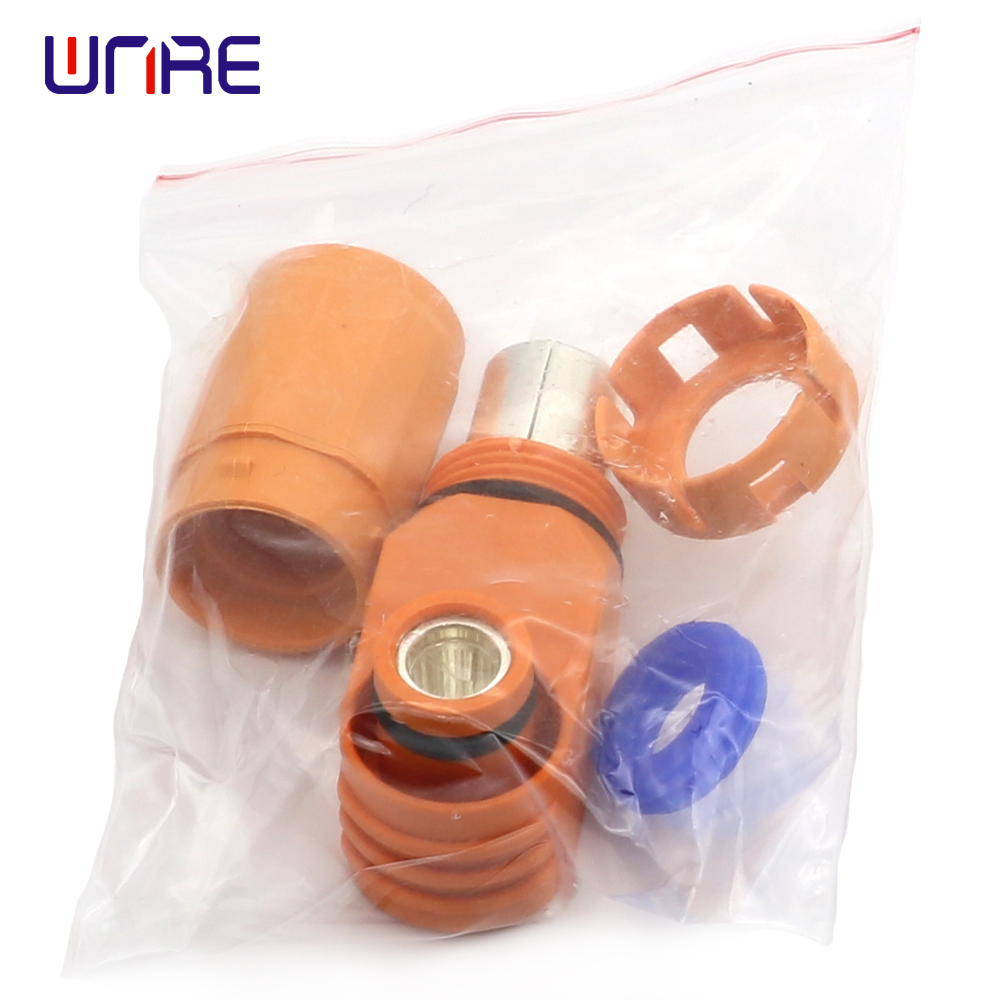

Packing

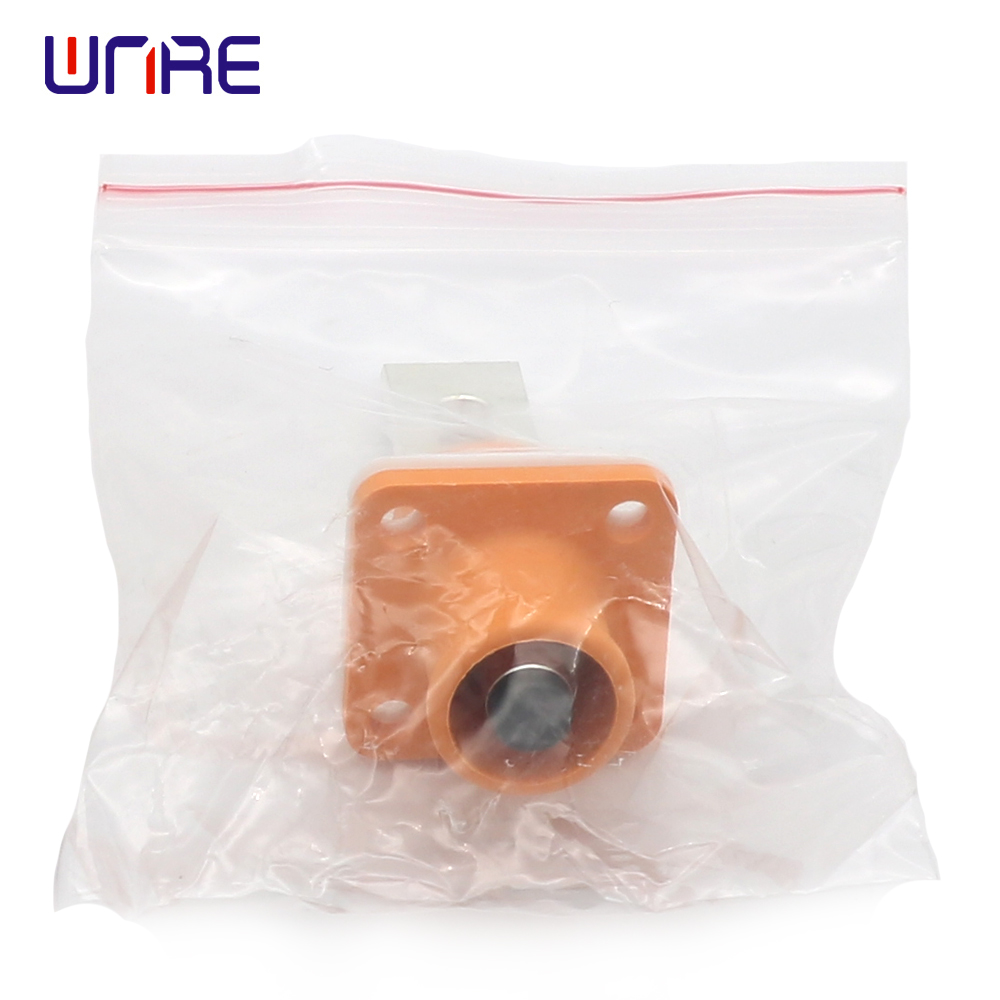

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
