2 3 4 pin SP21 SL21 Waterproof Cable Connector IP68 Plastic Circular

Short Description:

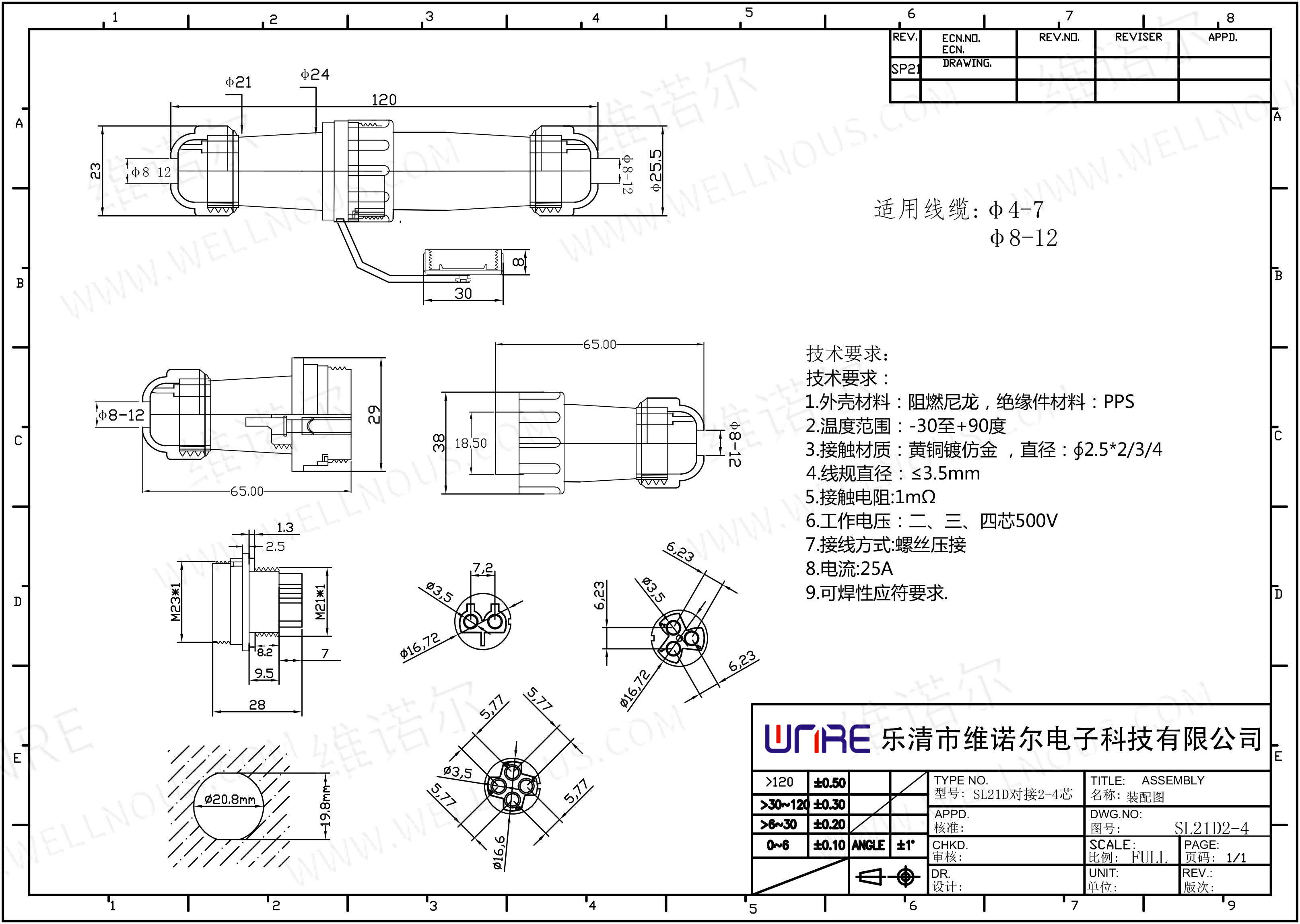

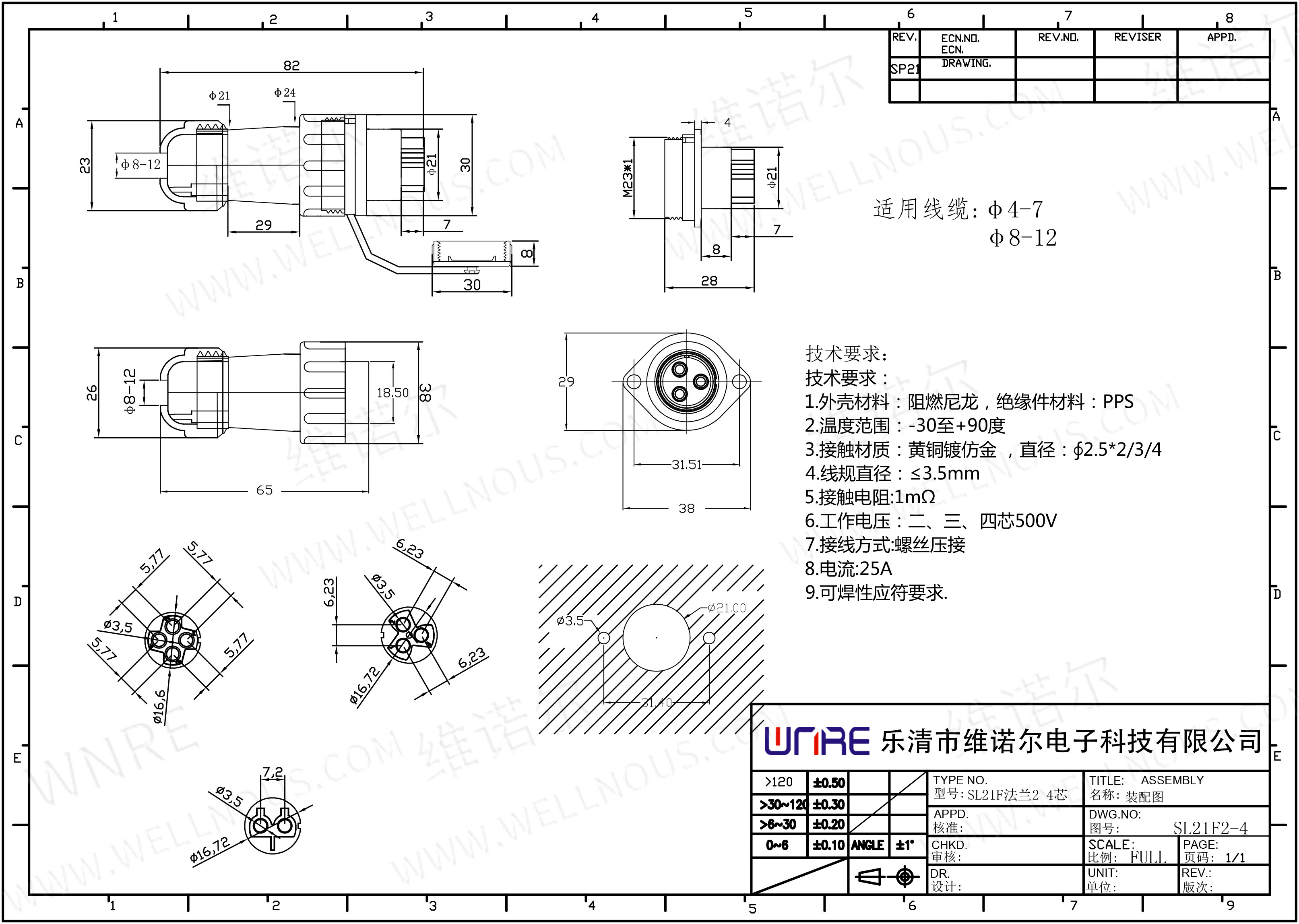

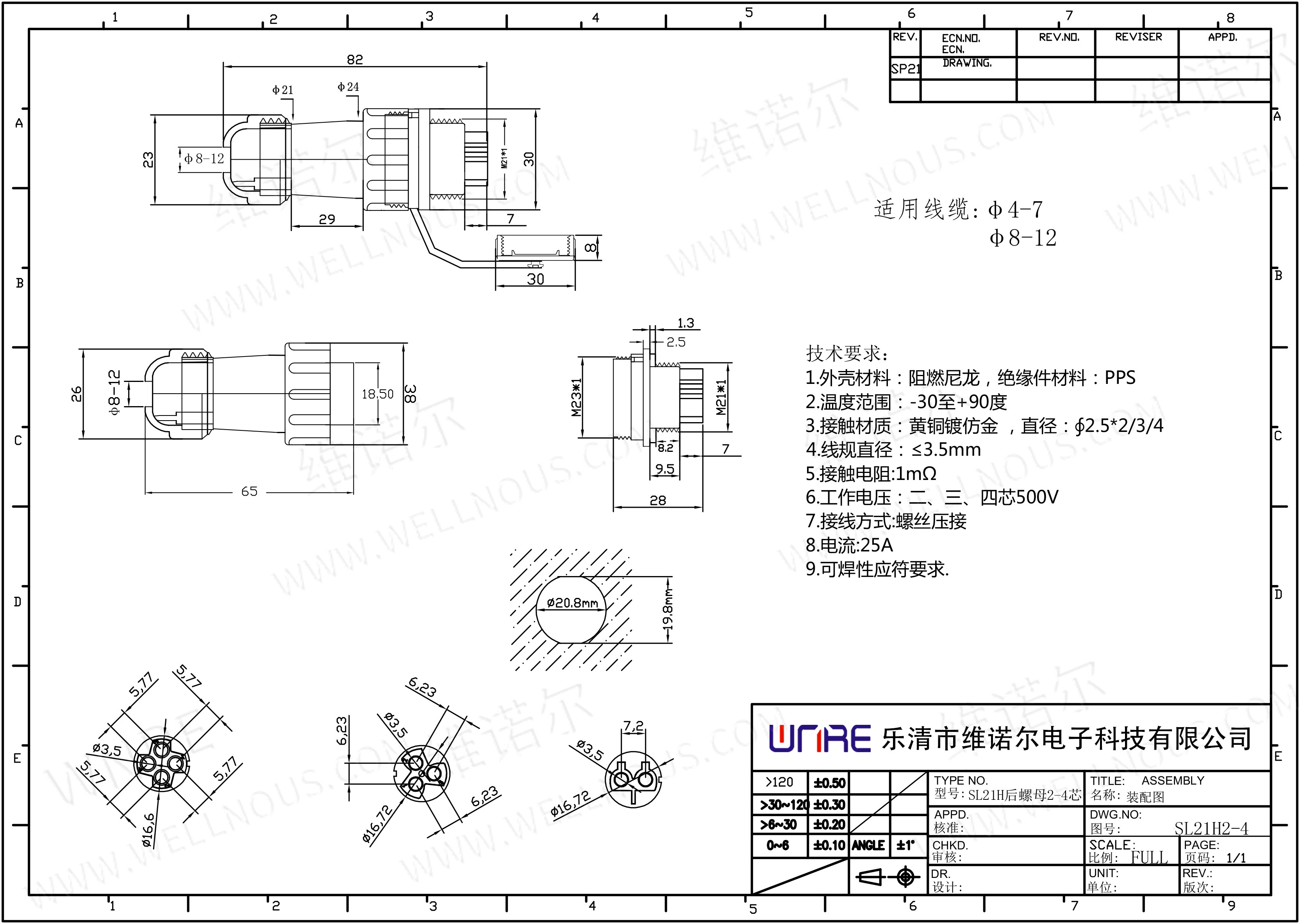

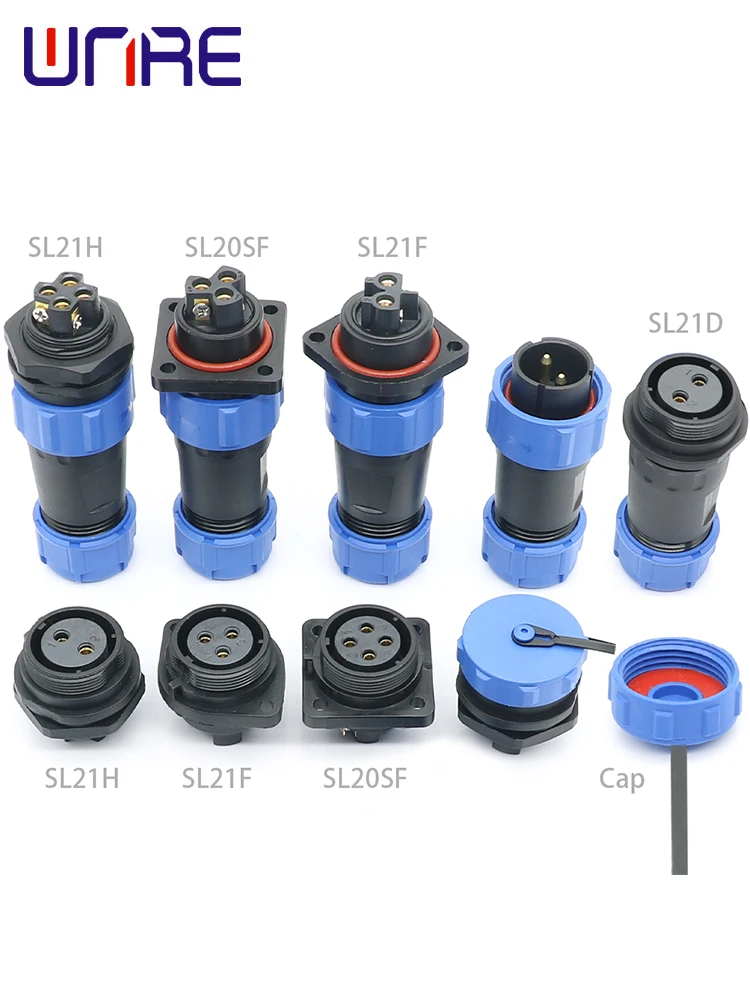

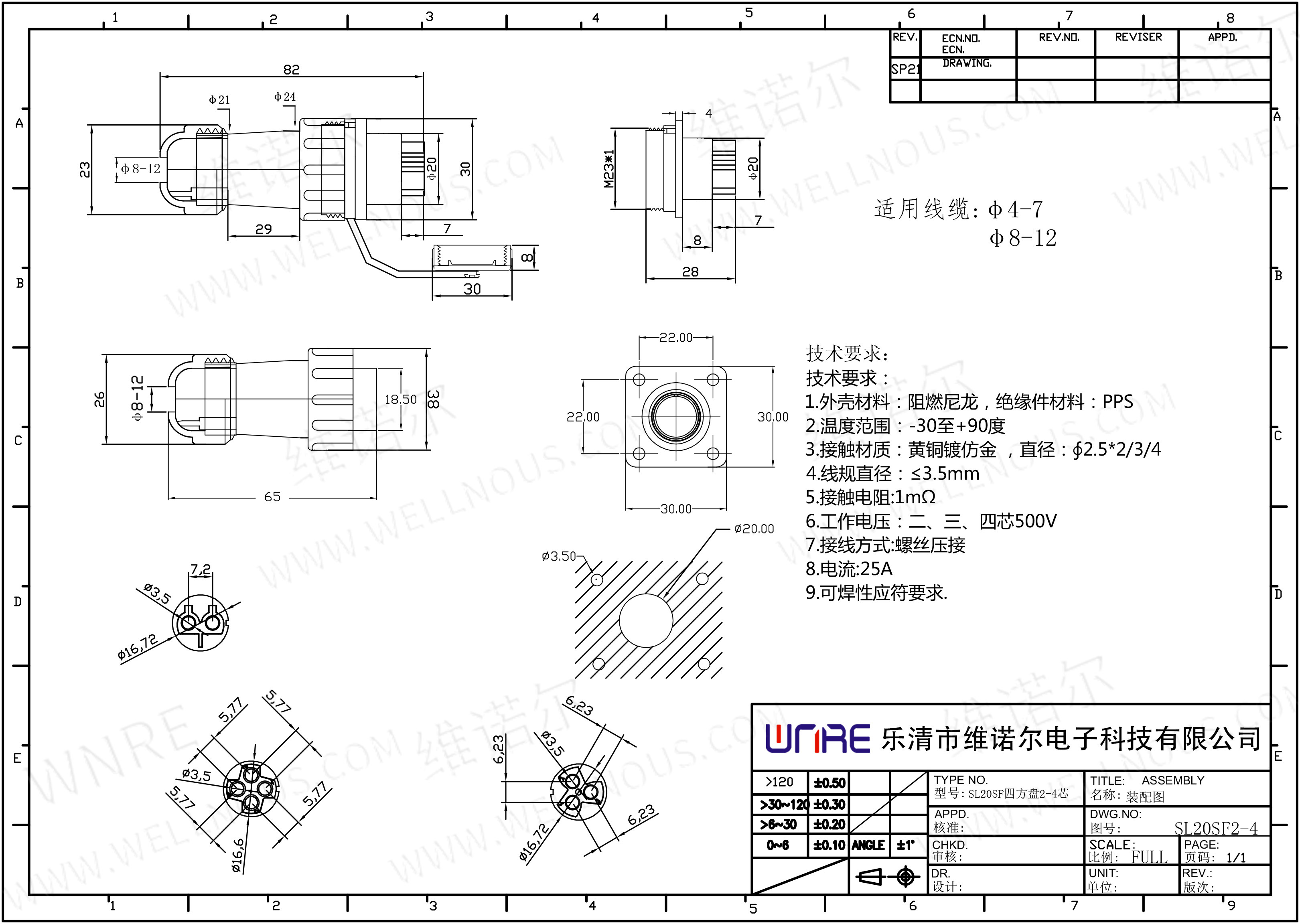

Model: SL21D, SL21H, SL21F, SL20SF,

Type: male, female

Pins: 2/3/4

Cable diameter: Φ8-12mm

Waterproof level: IP68

Ambient temperature: -30~90℃

Plugging life: 500 times


Product Detail

Product Tags

Shell material: flame retardant nylon, insulation parts material: PPS

Wiring method: screw crimp

Pins: 2/3/4

Cable diameter: Φ8-12mm

Waterproof level: IP68

Ambient temperature: -30~90℃

Contact resistance: 1mΩ

Operating voltage: 500V(2/3/4pins)

Current :25A

Wire diameter: ≤3.5mm

Plugging life: 500 times

The SP13 SP17 and SP21 connectors are all IP68 connectors, threaded coupling. SP13 SP17 SP21 is the smallest plastic shell IP68 waterproof connector, this miniature connector is one of our most popular outdoor watertight connector.

The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female contact.(Plug or socket versions), The IP68 sealing caps are available on both cable connector and panel connector.

This miniature IP68 waterproof connector is ideal for indoor/outdoor and under water hush conditions. such as outdoor led lighting, LED panel screens, outdoor security cameras, solar energy inverter,medical device, communications, marine equipment ect.control systems, measuring equipments and testing equipment, for data and power

Packing & Delivery

Packing
1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
