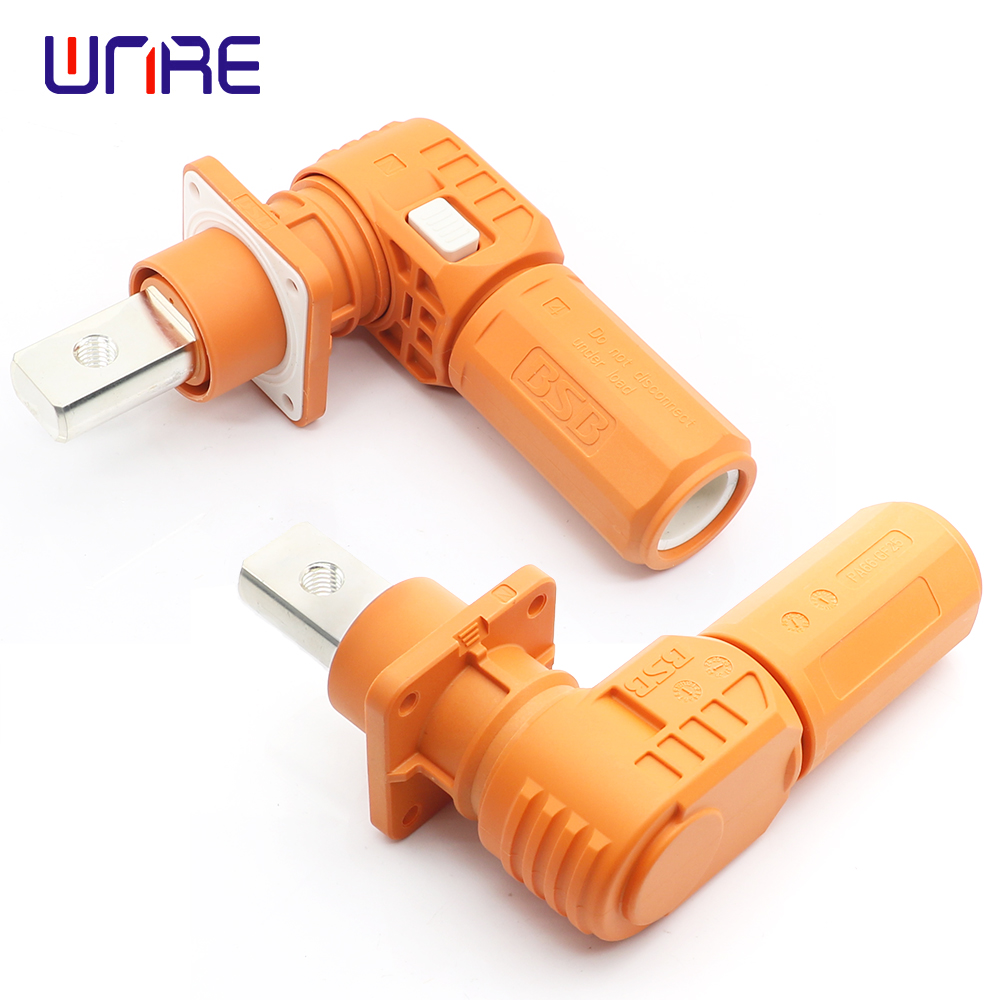

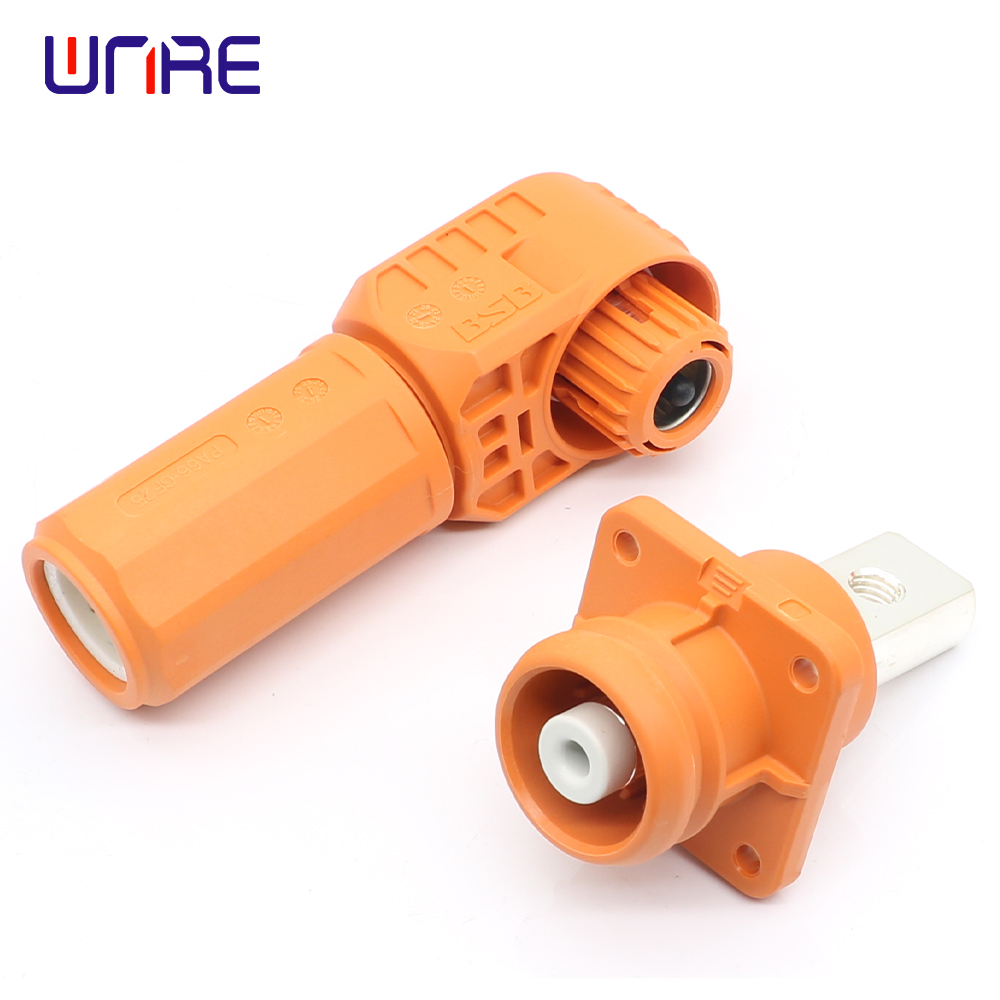

2000V/DC Single Core Quick Plug Energy Storage Connector New Energy Terminal Connector

Short Description:

Package including：1 set (plug and socket), orange or black

Product Parameter：

Model: E120 Energy storage connector

Rated voltage: 2000V/DC

Rated current: 350A (wire diameter 4/0AWG, 107mm²),

300A (wire diameter 3/0AWG, 85mm²),

250A (wire diameter 2/0AWG, 67mm²)

Dielectric strength: 5000V AC (50Hz, RMS) withstand voltage for 1min

Insulation resistance: 2000MΩ (1000V DC)

Voltage requirement: 5000V DC 60S

Contact resistance: 0.2MΩ max

Operating temperature: ‐40℃ ~ 125℃

Use relative humidity: 25℃, 5% ~ 95%

Storage temperature: ‐5℃ ~ 30℃

Salt spray grade: 48H

Protection level: Before plugging, the plug and socket meet IP20, IPXXB. After insertion, IP67 is satisfied

Mechanical life: 500 cycles

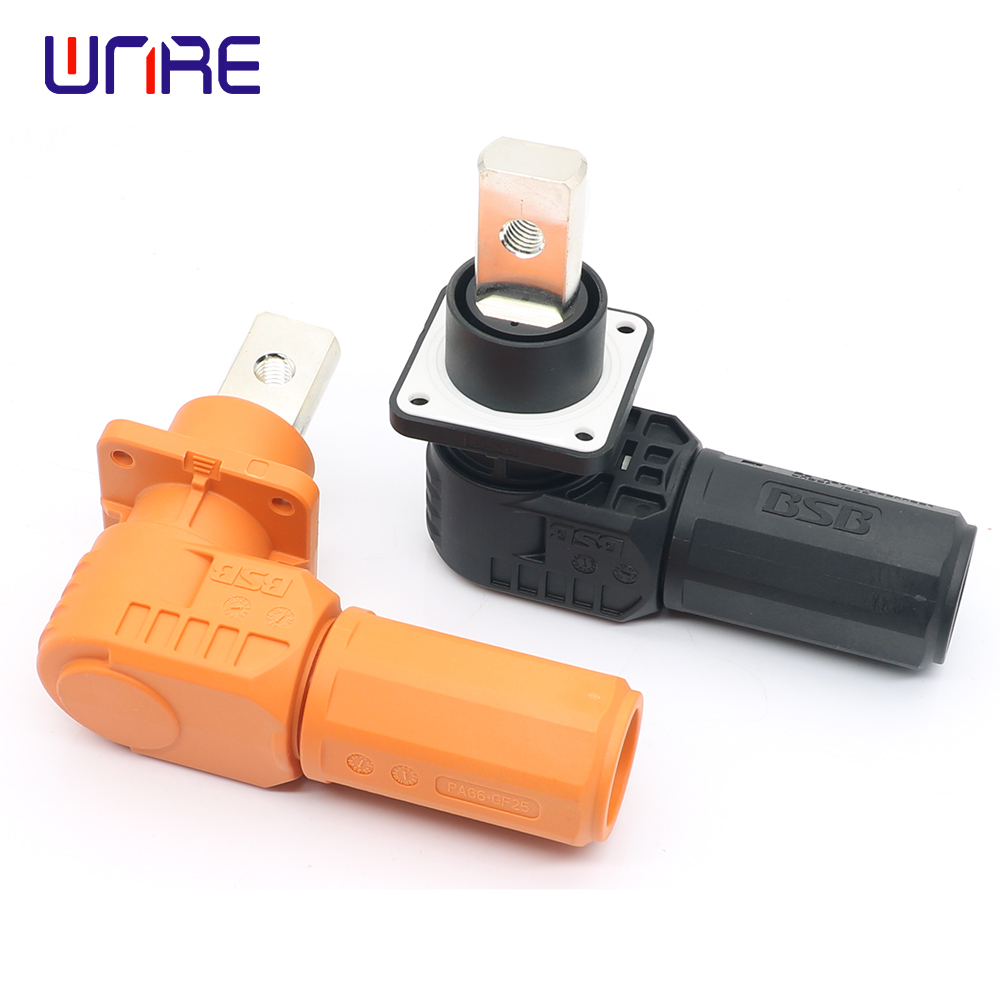

Key error proof (black/orange)

Note: Socket M8 threaded hole, recommended torque: 7-8N.M
