2+4 30A Connector Electric Bike Charger Charger Male Female Plug Socket

Product Parameter

Model: XGB-2+4

Type: male and female

Wire: 2C*15AWG+4C*23AWG, wire length 500mm

Waterproof class: IP65

Rated current: 10-30A

Contact impedance: Power PIN < 5 mohm; Signal PIN < 10 mohm

Insulation impedance: DC 1000V; 100 m Ω

Voltage resistance: Power PIN 2500VAC; Signal PIN 1000VAC; Leakage current 2mA

Non-point insertion and removal: 5000 times

Insertion force: 2.5-15KG; Extraction force: 4-8KG

Operating temperature range: -15~105℃

Salt spray test 48 hours

Technical requirements

1. The appearance of the product has no color difference, raw edge, missing materials, scratches and other bad

2. All materials used are environmentally friendly and meet ROHS requirements.

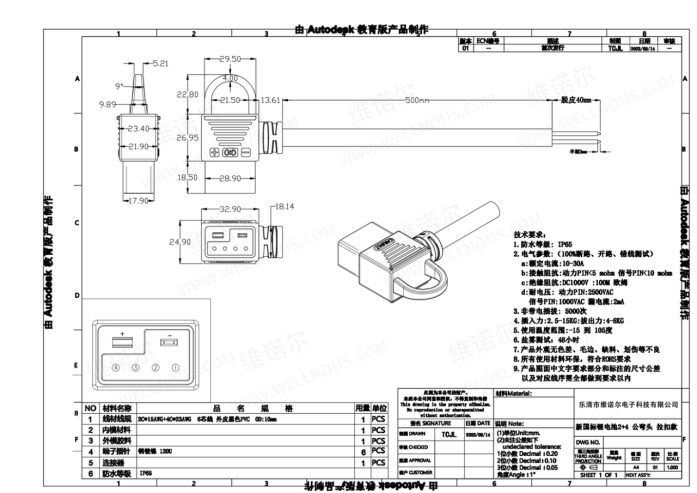

Product Drawing
