4.5*4.5 Tact Switch SMD Momentary Push Button Micro Tact Switch

Short Description:

Product Name:Tact Switch

Size:4.5*4.5*H

Terminal:DIP,SMT

Head shape:round head

Rated load:50mA 12V

Contact resistance:≤0.03Ω

Insulation resistance:100mΩ max

Temperature:-20ºC~+70ºC

Life:≥100,000 cycles

Certification:ROHS


Product Detail

Product Tags

tact switchrocker switch

metal push button switchtoggle switch

Product Name Tact Switch Model Number TS-4519, TS-4520
Size 4.5X4.5mm Terminal DIP,SMT
Rated Load 50mA 12V Temperature -20ºC~+70ºC
Contact resistance ≤0.03Ω Insulation resistance 100mΩ max
Life >100,000 cycles Certification RoHS
High 3.8 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0mm(customized support)

Warm tips:
Item heights come in a variety of sizes
Special note: the height does not include the overall height of the pin
Height = switch handle + total height of base

Product details

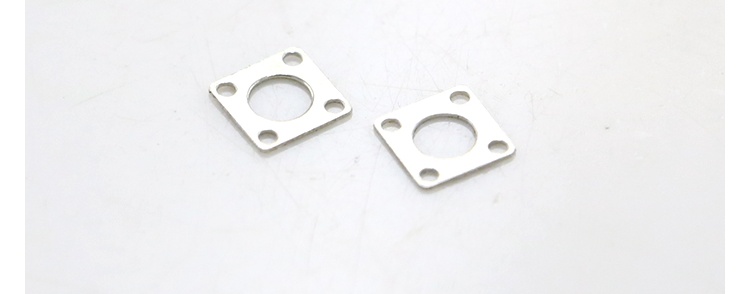

High quality support
High quality metal materials are selected, and nickel plating on the surface increases tin performance and prevents oxidation on the surface to add beauty.

TS-4519JTH详情_03_看图王

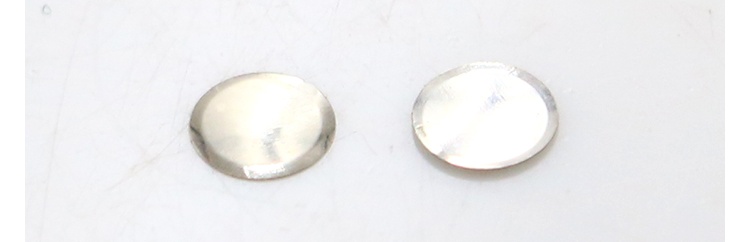

High quality shrapnel
High quality stainless steel/silver-plated copper shrapnel, high rebound life and good contact performance, make the product more durable.

TS-4519JTH详情_04_看图王

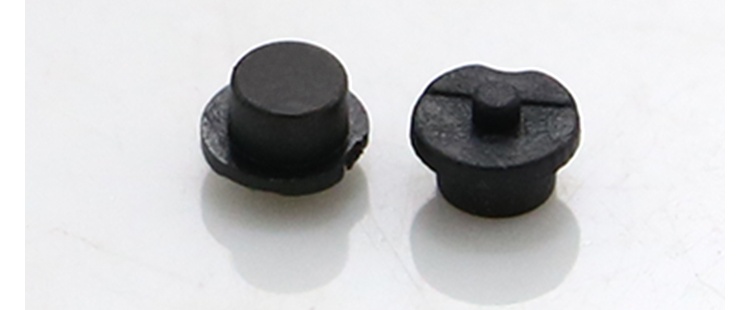

Button press cap
Proper according to the cap, smooth surface processing feel more perfect.

TS-4519JTH详情_05_看图王

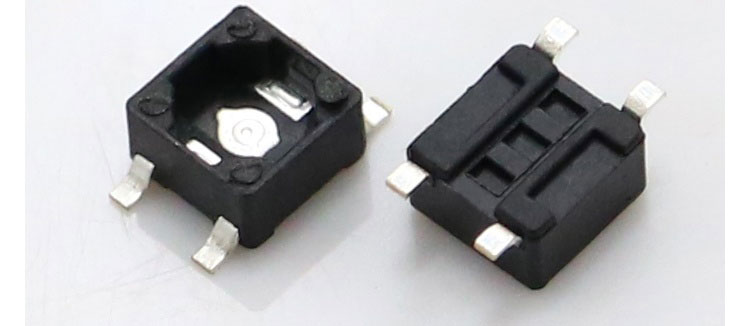

Seiko base
High-tech achievements Seiko base for the quality of products to lay the foundation.

TS-4519JTH详情_06_看图王

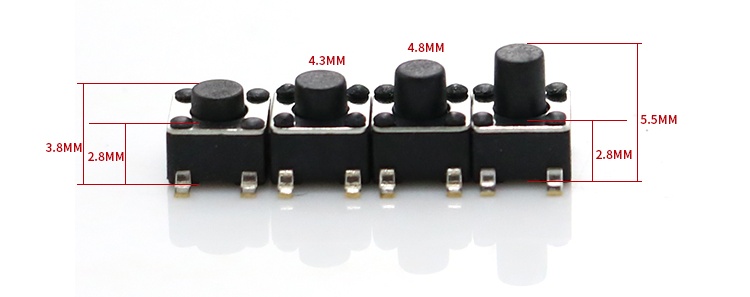

Highly customized
Can customize the required height of the product.

TS-4519JTH详情_07_看图王

Product drawing

TS-4519JTH
TS-4520JH
