DC Socket With Nut DC Power Jack Socket Pin1.3/1.65/2/2.5mm Female Pan DC-025M Male Plugel Mount Connector

Short Description:

Model Number：DC-025M

Rated Voltage：DC12V 2A

Insulatation aand extration force：3-20N

Material：copper、zinc alloy

Life:5000 times

Waterproof Cap：red, transparent, black (black is normal)

APPLICATION：DC power jack

Operation Temperature：-20~80℃

The specification of Pin:1.3, 1.65, 2.0, 2.5mm

Male Specifiication：5.5*2.1, 5.5*2.5, 4.0*1.65, 3.5*1.3

Certificate：RoHS

Send email to us

Product Detail

Product Tags

The product model number is DC-025M and the rated voltagevis DC12V 2A.

The production of insulatation and extration force is 3-20N.

We use copper and zinc alloy as its material.

The product life span is 5000 times.

Waterproof Cap of color has three kinds,such as red, transparent and black (black is normal).

The product APPLICATION belongs to DC power jack. and the Operation Temperature is -20~80℃.

The specification of Pin:1.3, 1.65, 2.0, 2.5mm

This is the product male Specifiication：5.5*2.1, 5.5*2.5, 4.0*1.65, 3.5*1.3.
In addition,we get the Certificate：RoHS.

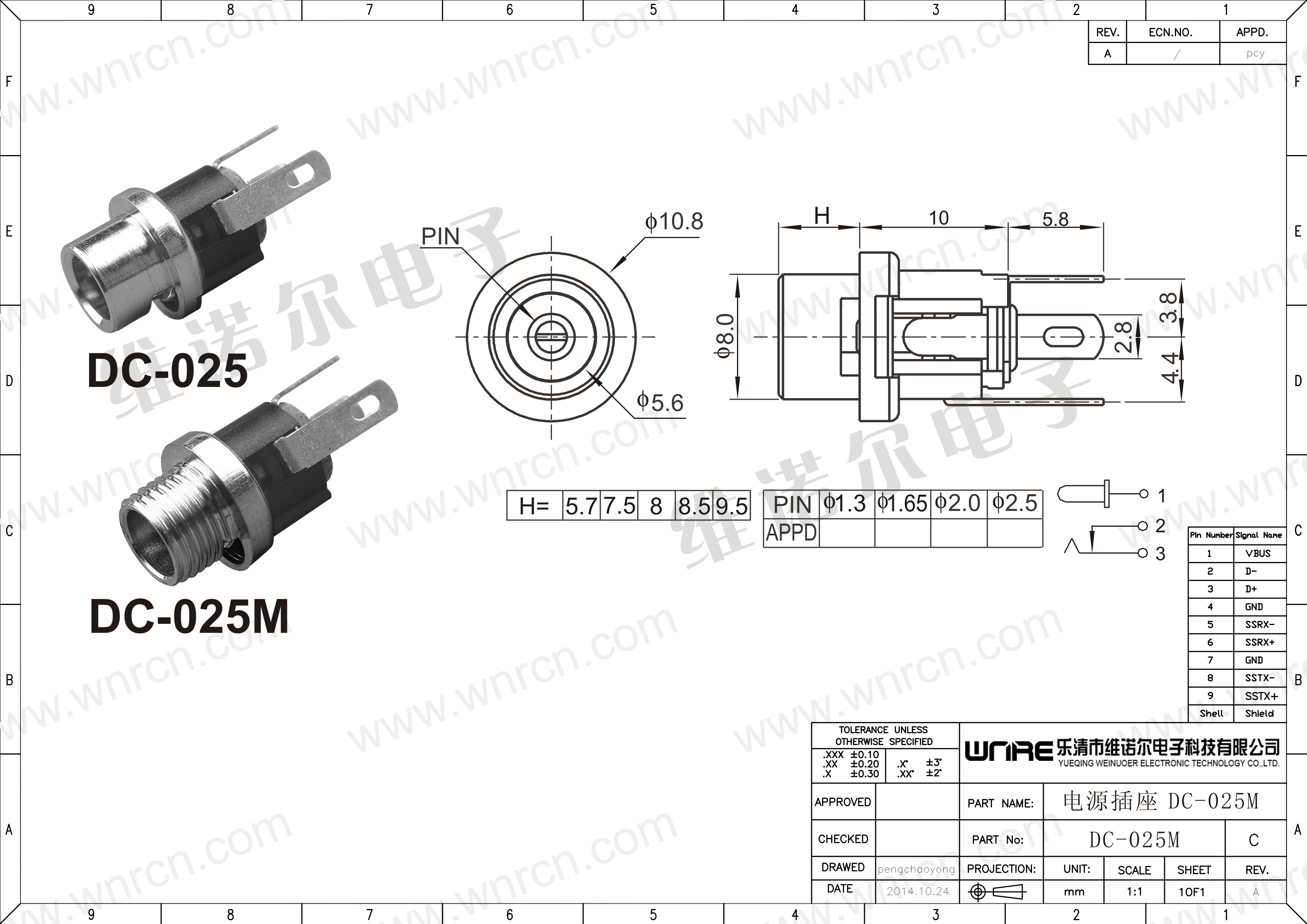

DC-025M DC-025M 1.3Pin Inter Diameter 3.5

Packing

Packing
1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request
Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.
Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
