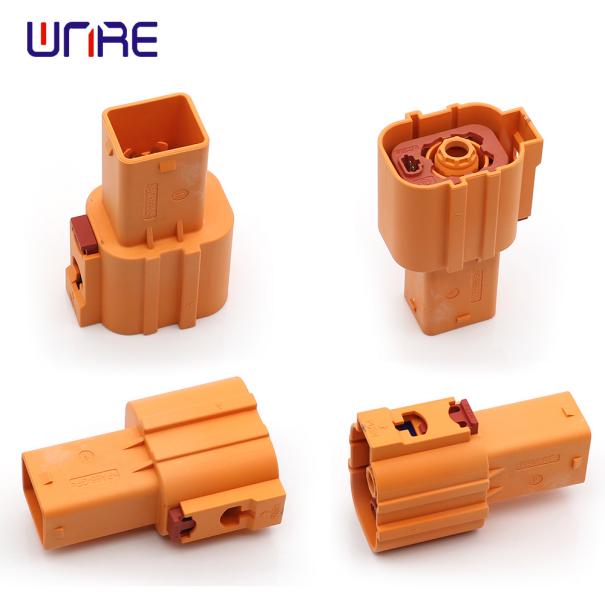

8mm single core straight plug socket
Product Parameter
Product Model:
8mm single core straight plug socket
Mating design:
Serviceable locking leg
Locking assurance by CPA
Operation with handle.
Termianl system:
1 x Ø8mm Radsok, silver plated
wire size: 25/35/50mm², shielding
HVIL contact system.
Terminal technology:
Crimping for power termination.Screw fasten for power terminal
Crimping for HVIL termination
General Features:
IP67, IP6K9K (mated)
IPXXB (separated)
High pressure interlock
360 ° shielding
Material:
Plastic housing: PA66-GF V0, Orange
Terminal: Copper alloy, silver plated
RFI/EMI protection: metal shield
Performance characteristics:
Operation force: ≤100N
Temp. Range: - 40 ℃ ~ 140 ℃
Rated Voltage: 1500V DC
Mating Cycles: ≥50
Current Capacity: 125A=25mm², 150A=35mm², 200A=50mm²
Product characteristics
1. High temperature resistance, flame retardant, beautiful and durable.
2. High quality material selection, reliable, safe and durable products.
Product Drawing



Application Areas

Package picture
