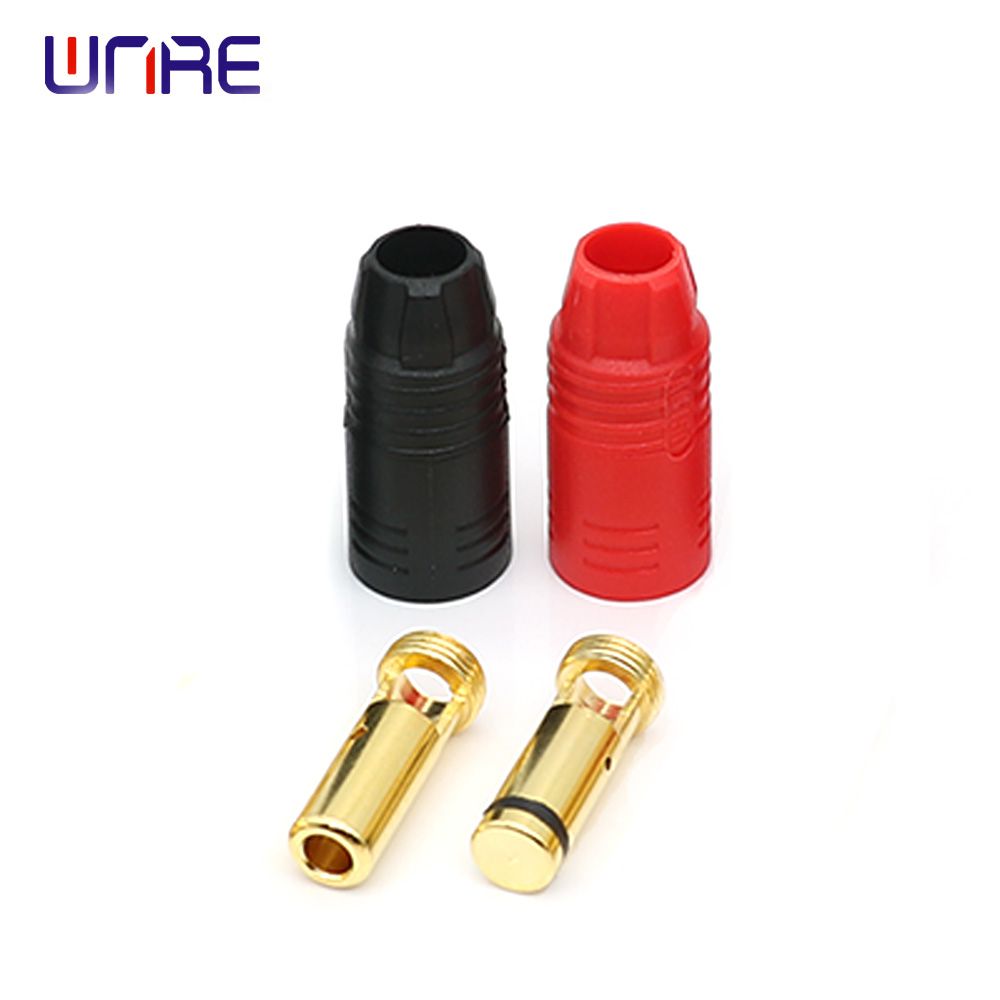

AS150-M Battery Terminal Plug With Lid Set
Product Parameter
Product Model: AS150-M
Rated Current: 65A MAX（8AWG△＜85℃）;Pin:1A
Voltage Resistance: 500V DC
Insulation resistance: ≥2000MΩ
Contact resistance: ≤0.8MΩ
Mechanical life: 100times
Salt Spray: 48h
Protection level: IP40
Operational Temperature: -20℃~120℃
Flame Retardant Rating: UL94 V-2
Outer Hull: PA, BLACK, RED
Pinhole: Aldary，Elecreoplate: Gold Plating
Product characteristics
1.AS150-F is a 180° outlet welded assembly type single PIN joint without resistance, widely used in plant protection and other professional fields of UAV.
2.It applies to the wire-to-wire connection of lithium batteries, motors, and controllers.
Announcements
When using, do not exceed rated current and voltage.
Do not use it when external forces are applied to the connector.
Do not use it in a place with high temperature and humidity.
When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.
Product Drawing
Application Areas
Telecontrolled aircraft
telecar
Remote control ship
Unicycle
Electric vehicle
UAV
Traversal machine
Solar lamp
Balancing car
Electric scooter
Solar lamp
