Gold Plated XT30(2+2)-F Plug With Signal Pin
Product Parameter
Product Model: XT30(2+2)-F
Rated Current: 20A MAX（16AWG△＜85℃）;Pin:1A
Voltage Resistance: 500V DC
Insulation resistance: ≥2000MΩ
Contact resistance: ≤1.2MΩ
Mechanical life: 100times
Salt Spray: 48h
Protection level: IP40
Operational Temperature: -20℃~120℃
Flame Retardant Rating: UL94 V-0
Outer Hull: PA, BLACK
Pinhole: Aldary，Elecreoplate: Gold Plating
Product characteristics
1, XT30(2+2)-F is 90° outlet welding type assembly type 2+2PIN connector, is the current power lithium power plug-in standard parts, can board vertical XT30(2+2)PB-M, board horizontal XT30(2+2)PW-M mutual matching.
2. It can be used to connect lithium batteries to controllers.
Announcements
Please do not exceed the rated current and voltage when in use.
Do not use it when external forces are applied to the connector.
Do not use it in a place with high temperature and humidity.
When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.

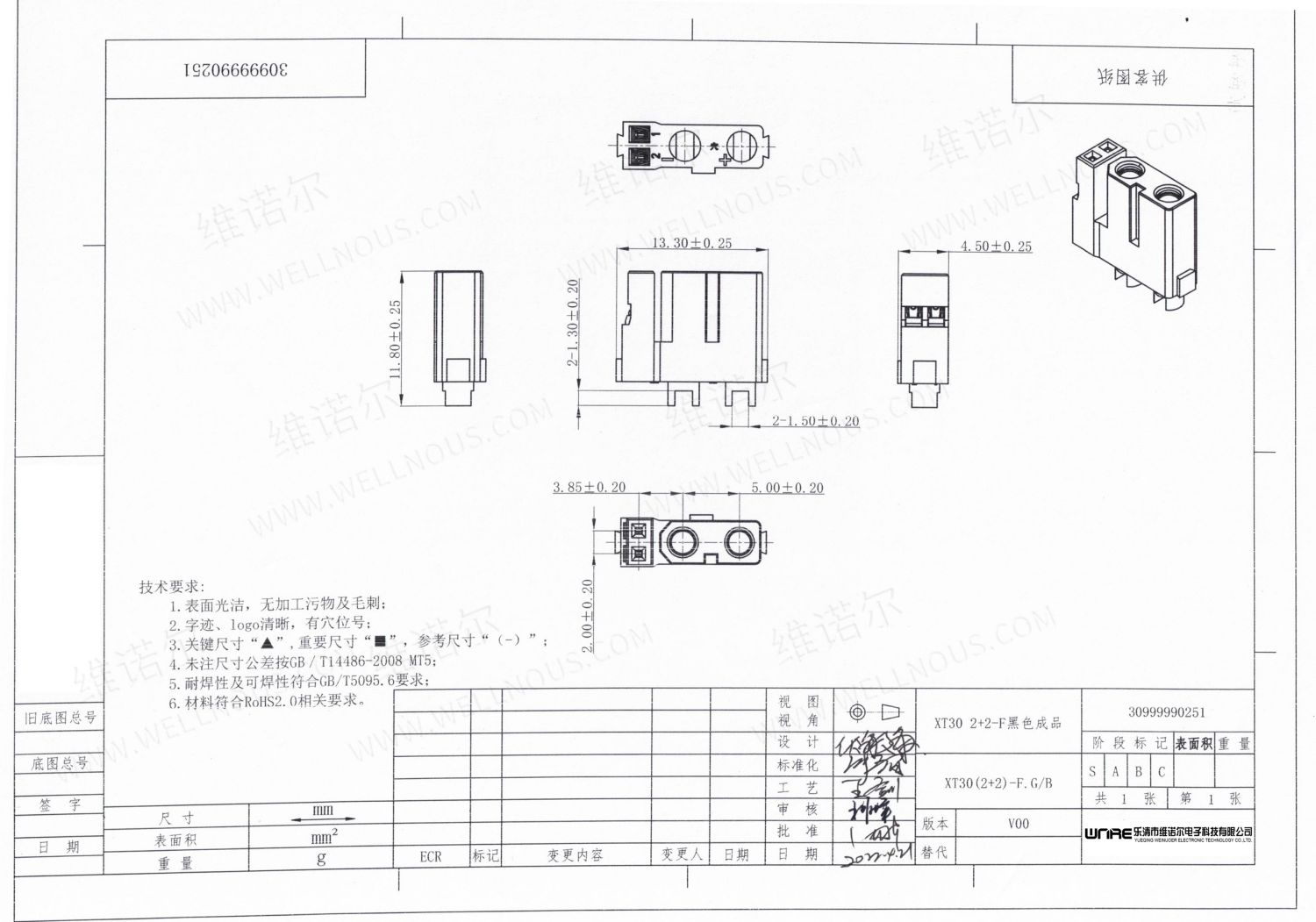

Product Drawing
Application Areas
Telecontrolled aircraft
telecar
Remote control ship
Unicycle
Electric vehicle
UAV
Traversal machine
Solar lamp
Balancing car
Electric scooter
Solar lamp
