Gold Plating AS150U(2+4)-F Plug Connector Resistance Adapter

Short Description:


Product Detail

Product Tags

Product Parameter

Product Model: AS150U(2+4)-F

Rated Current: 75A MAX(8AWG△<85℃);Pin: 1A

Voltage Resistance: 500V DC

Insulation resistance: ≥2000MΩ

Contact resistance: ≤0.8MΩ

Mechanical life: 100times

Salt Spray: 48h

Protection level: IP40

Operational Temperature: -20℃~120℃

Flame Retardant Rating: UL94 V-0

Outer Hull: PA, YELLOW

Pinhole: Aldary,Elecreoplate: Gold Plating

Product characteristics

1. AS150U(2+4)-F is a 180° outlet welding type assembly type 2+4PIN connector, plant protection machine special AS150U(2+4) series products to meet the use of intelligent battery only.

2. It can be used for wire-to-wire connection between lithium battery and controller.

Announcements

When in use, do not exceed the rated current and voltage.
Use it in front of outside powers
Do not use it in a place with high temperature and humidity.
When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.

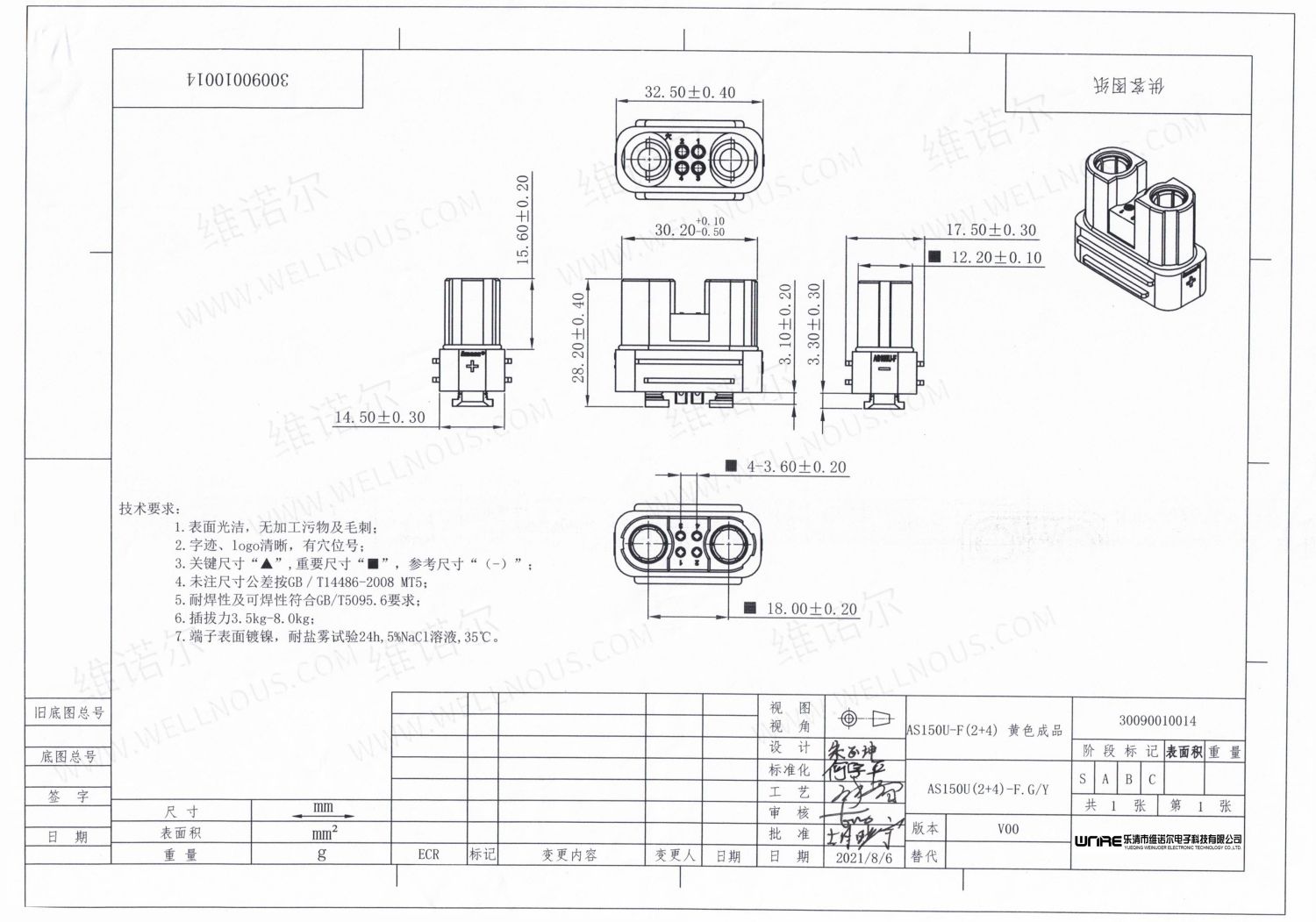

Product Drawing

AS150U-F(2+4)

Application Areas

2

Telecontrolled aircraft

telecar

Remote control ship

Unicycle

3

Electric vehicle

UAV

Traversal machine

Solar lamp

1

Balancing car

Electric scooter

Solar lamp
