Gold Plating XT90(2+2)-F Connectors Plug With Lid
Product Parameter
Product Model: XT90(2+2)-F
Rated Current: 48A MAX（10AWG/△＜85℃）；
Voltage Resistance: 500V DC
Insulation resistance: ≥2000MΩ
Contact resistance: ≤1.0MΩ
Mechanical life: 100times
Salt Spray: 48h
Protection level: IP40
Operational Temperature: -20℃~120℃
Flame Retardant Rating: UL94 V-0
Outer Hull: PA, YELLOW
Pinhole: Aldary，Elecreoplate: Gold Plating
Product characteristics
1. XT90(2+2)-F is a 180° out-line welded injection molding + assembly type 2+2PIN connector, which is the current power lithium power plug-in standard parts with wired layout design.
2. It may be used to connect the lithium battery and the controller.
Announcements
When in use, do not exceed the rated current and voltage.
Do not use in an environment where external forces are applied.
Do not use it in a place with high temperature and humidity.
Please be careful to prevent deformation, bending, or ejecting of terminals.

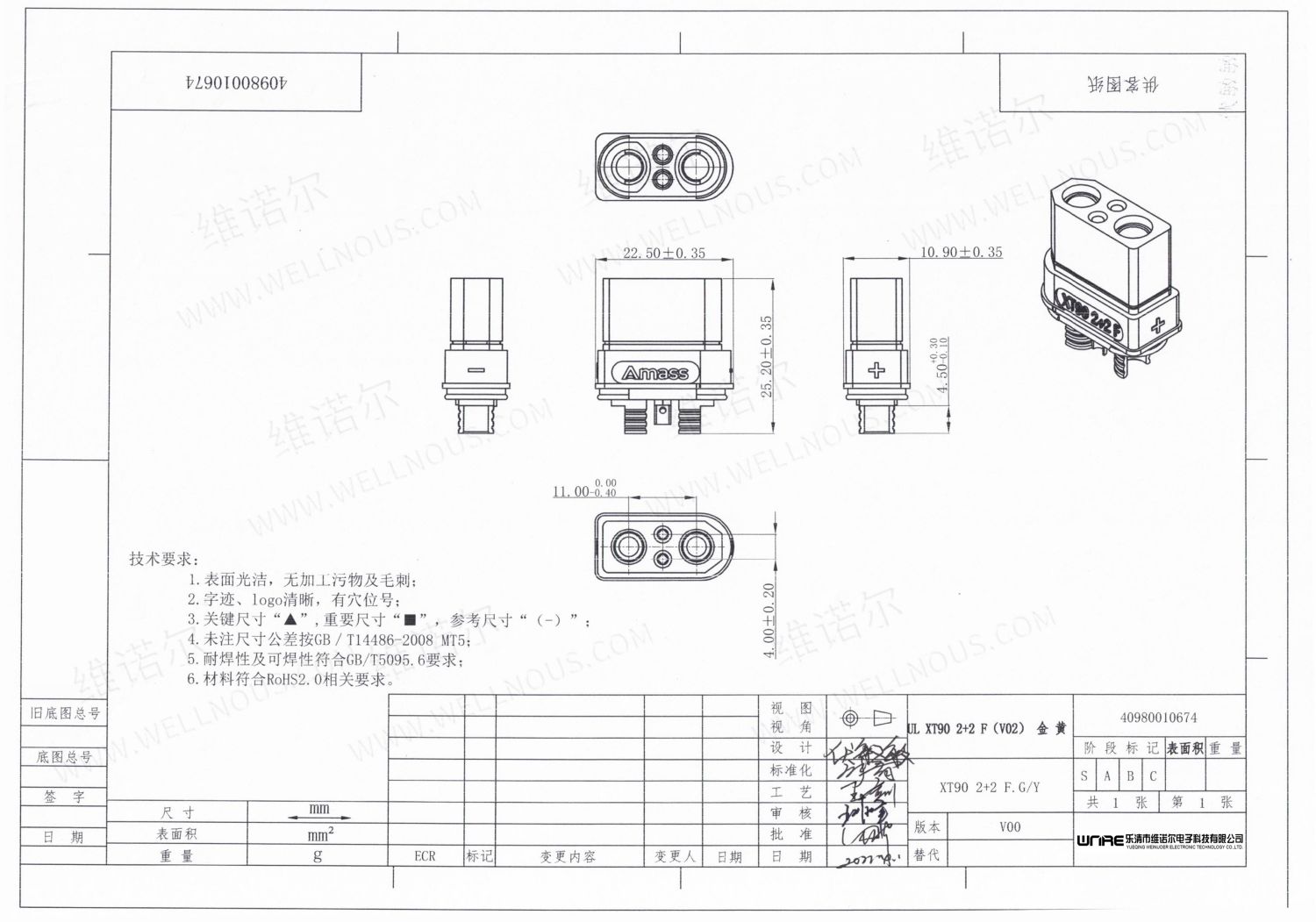

Product Drawing
Application Areas
Telecontrolled aircraft
telecar
Remote control ship
Unicycle
Electric vehicle
UAV
Traversal machine
Solar lamp
Balancing car
Electric scooter
Solar lamp
Products categories
-
Charging Cable Magnetic Connector with USB Φ10m...
-

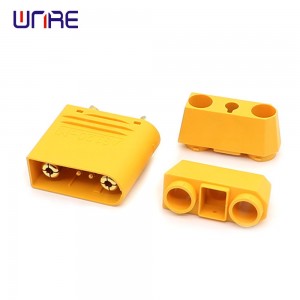

AS120-M Aircraft Model Live Resistance Anti-spa...
-
Power Magnetic Connector pogopin plug-in chargi...
-

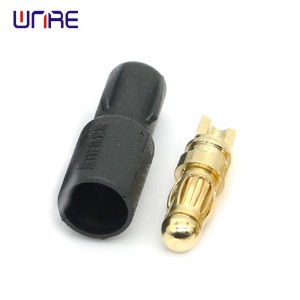

SH3.5-F Gold Plated Connector With Protective S...
-
