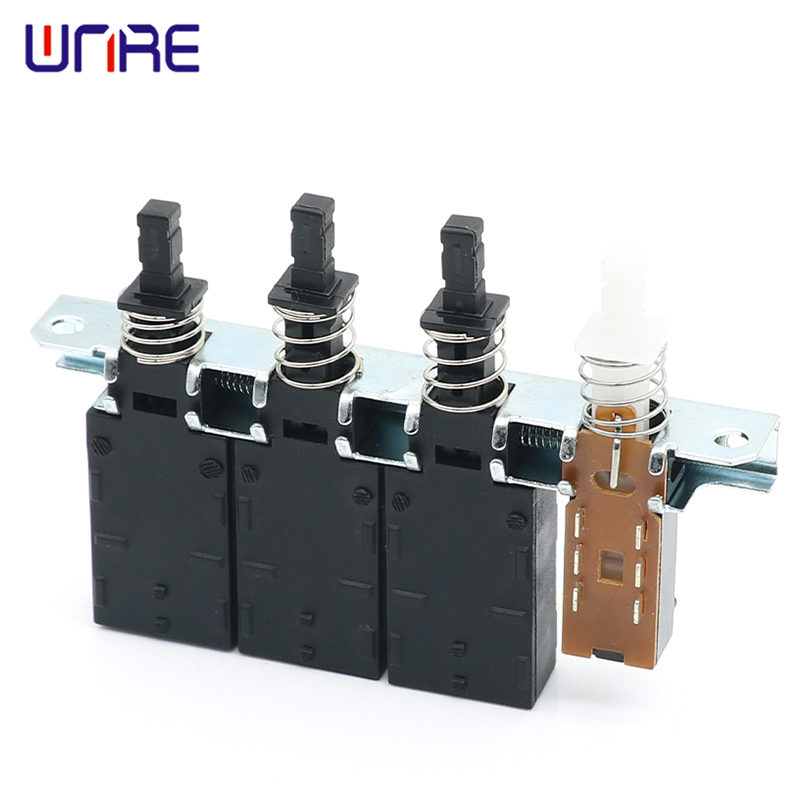

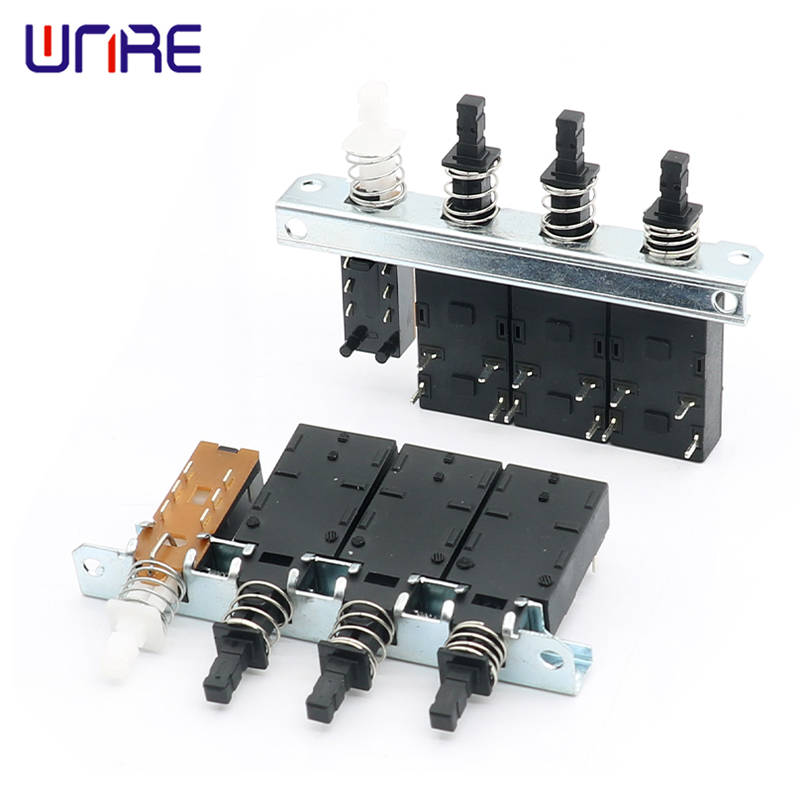

GST P4A15 4P1 atching Car Engine Power Switch Power switch and button Switch Self-locking Waterproof Button

Short Description:

Product Model:GST-P4A-1P1

Voltage Resistance: 2000V DC

Insulation resistance: ≥100MΩ

Mechanical life: 20000times

Operating Force:2N~8N

Withstand voltage:1500V 1s no breakdown.

Temperature: -25~+85℃

Relative humidity:≤95%

Rated Voltage:250V AC

Rated Current:4A


Product Detail

Product Tags

Product characteristics

Metal surface should be smooth and not be corroded by rust.Plating should not crease or peel off.Plastic casing should not be uneven,crude or have any cracks or damage. The insulation of different parts conducting electricity should bear the function of experiment voltage and there

are no punctures on it.

90% of the surface will be covered by solder.Without deformation of base,

can satisfy mechanical, electronic performance. Action without blocking

phenomenon, button allows the wear surface

Product Drawing

button Switch GST P4A15 4P1
