High Voltage Current Connectors Plug Socket New Energy Electric Vehicle Car Hv Connector

Short Description:

Product name: Low current high voltage connector

Some conclusions: 2/3/4/5/6

Wiring range: 2.5-6mm² shielded cable

Inserting and pulling force: < 100N

Rated voltage: 800V DC

Rated current: Max. 40A, ambient temperature 70℃

Insulation resistance: > 200M

Insulation withstand voltage: 3000V AC

Protection level: IP67, IP6K9K(link status)

Anti-touch: IP2XB

Operating temperature: -40℃~125℃

Terminal: copper/copper alloy, tin plated surface

Shell: PA66 + GF


Product Detail

Product Tags

Product name: Low current high voltage connector

Some conclusions: 2/3/4/5/6

Wiring range: 2.5-6mm² shielded cable

Inserting and pulling force: < 100N

Rated voltage: 800V DC

Rated current: Max. 40A, ambient temperature 70℃

Insulation resistance: > 200M

Insulation withstand voltage: 3000V AC

Protection level: IP67, IP6K9K(link status)

Anti-touch: IP2XB

Operating temperature: -40℃~125℃

Terminal: copper/copper alloy, tin plated surface

Shell: PA66 + GF

Application: ac slow charge input, air conditioning, oil pump, electric heating and other auxiliary equipment of new energy vehicles.

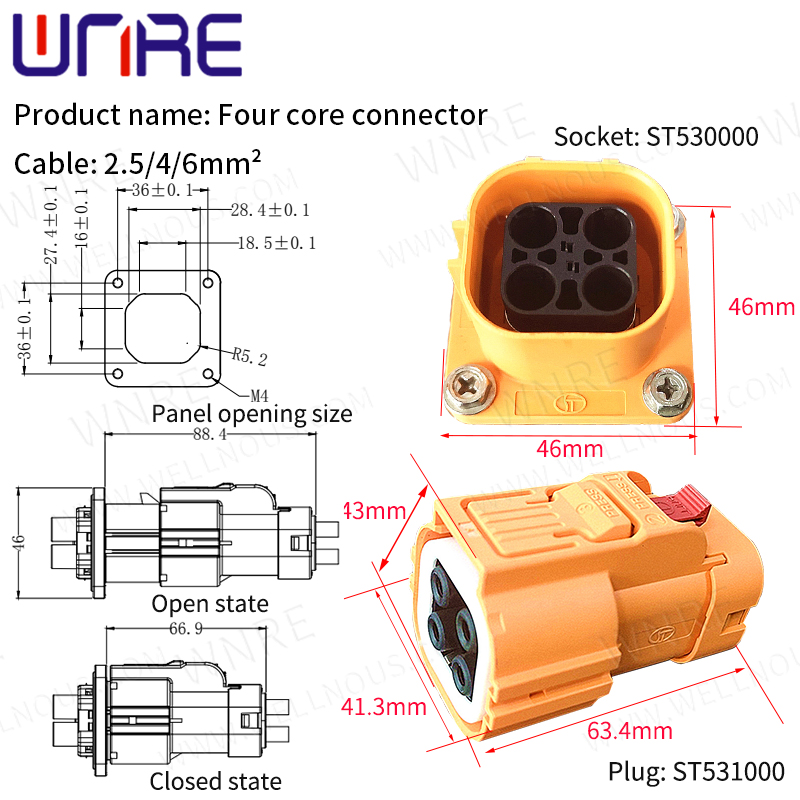

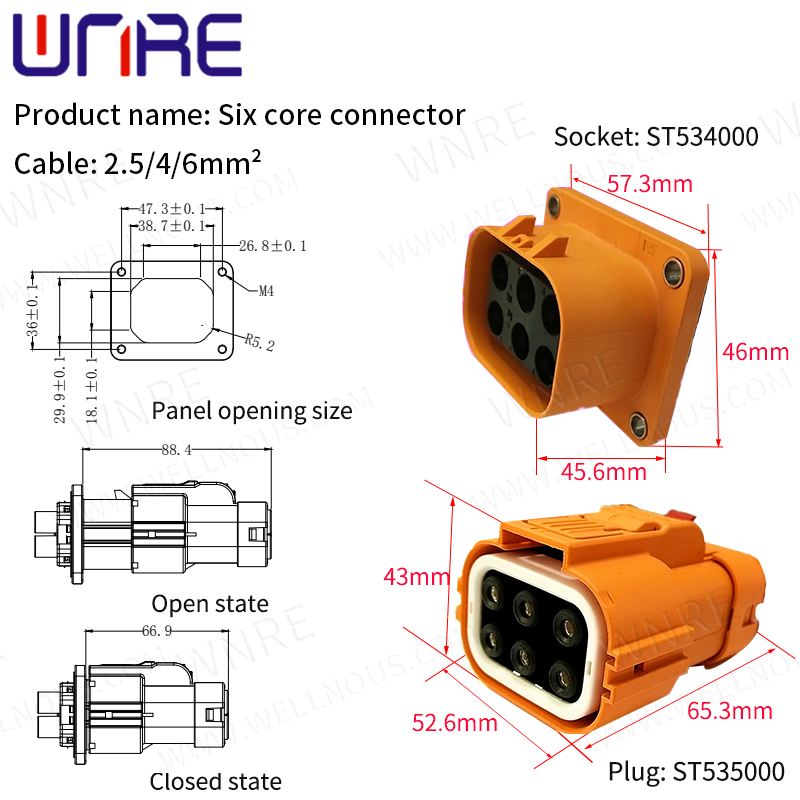

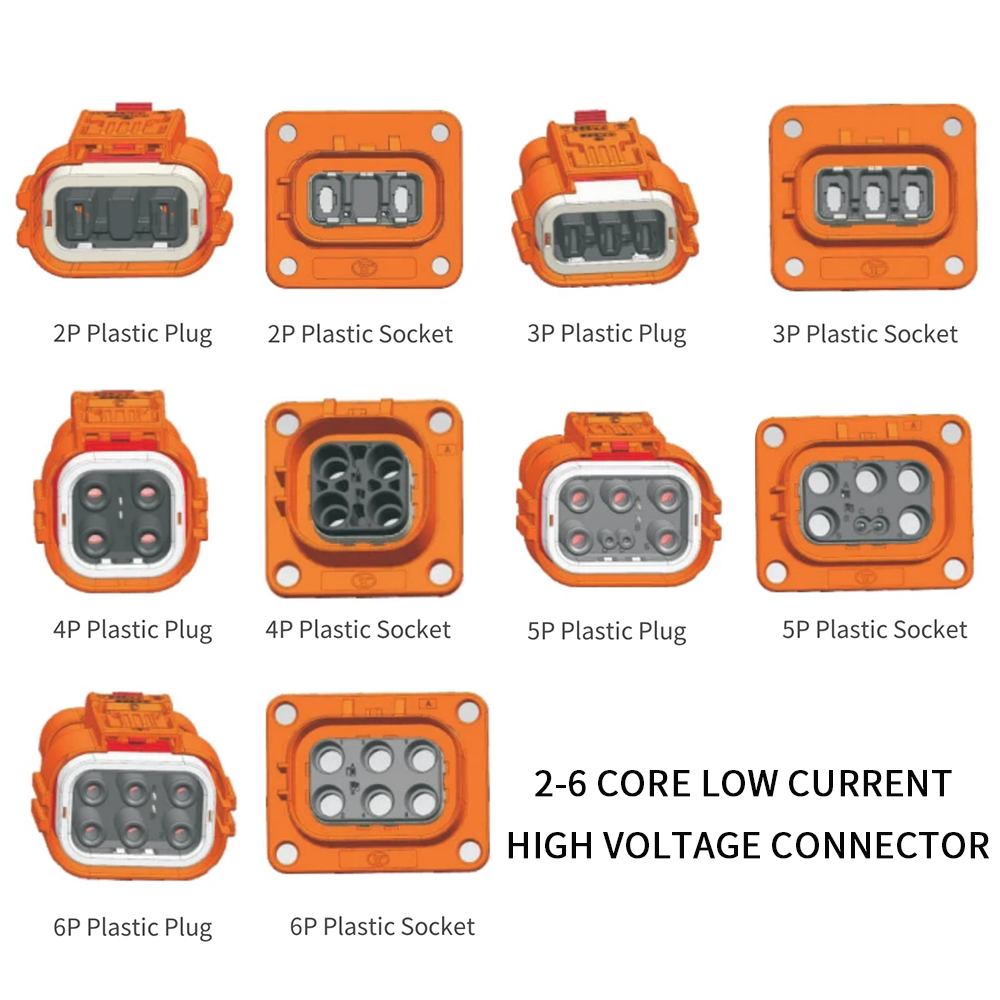

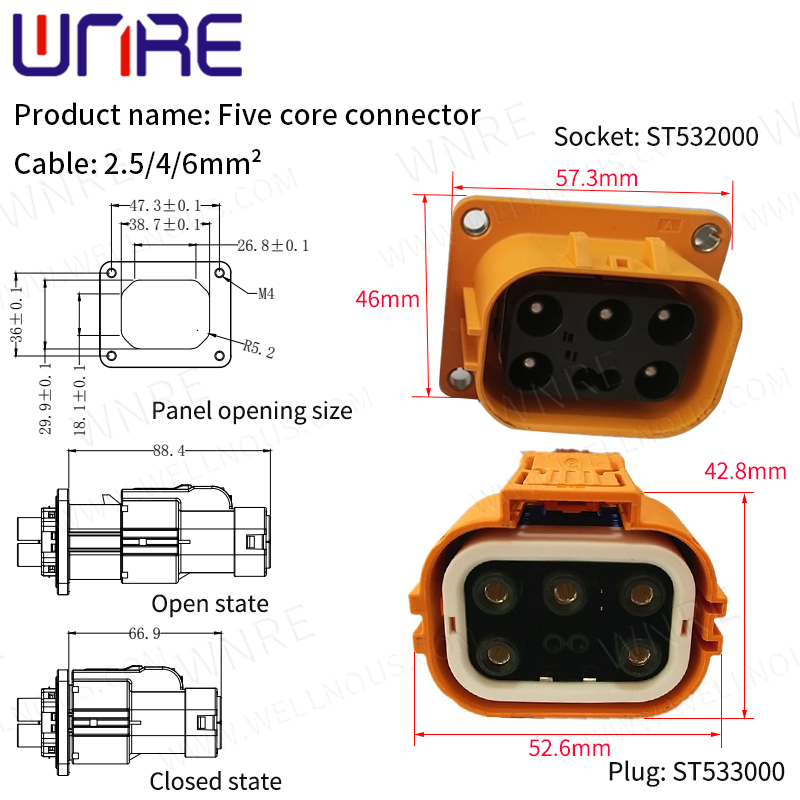

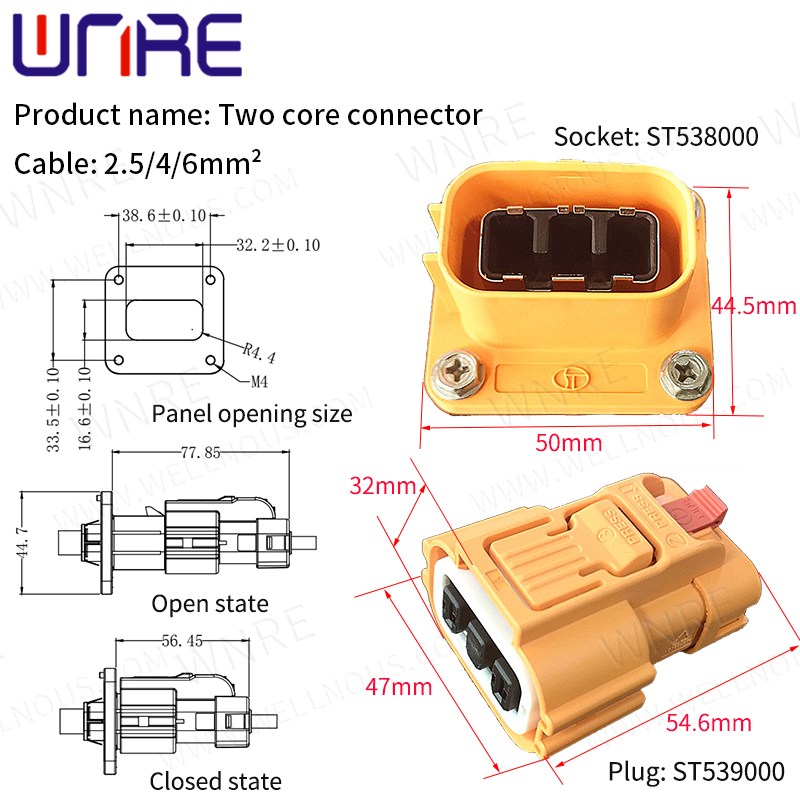

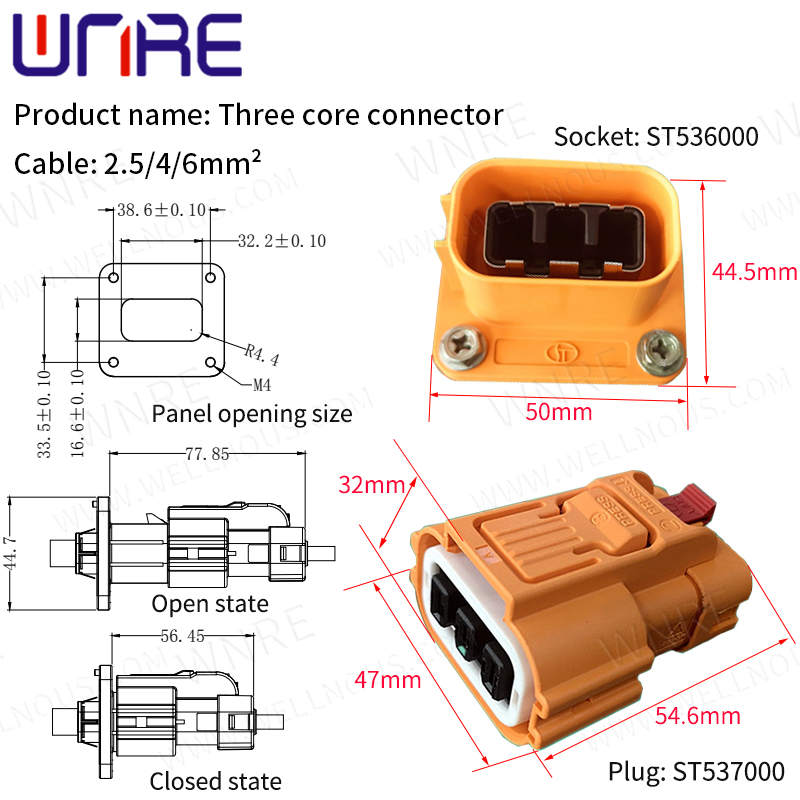

2 core 3 core 4 core 5 core 6 core

Packing & Delivery

Packing

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery

Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
