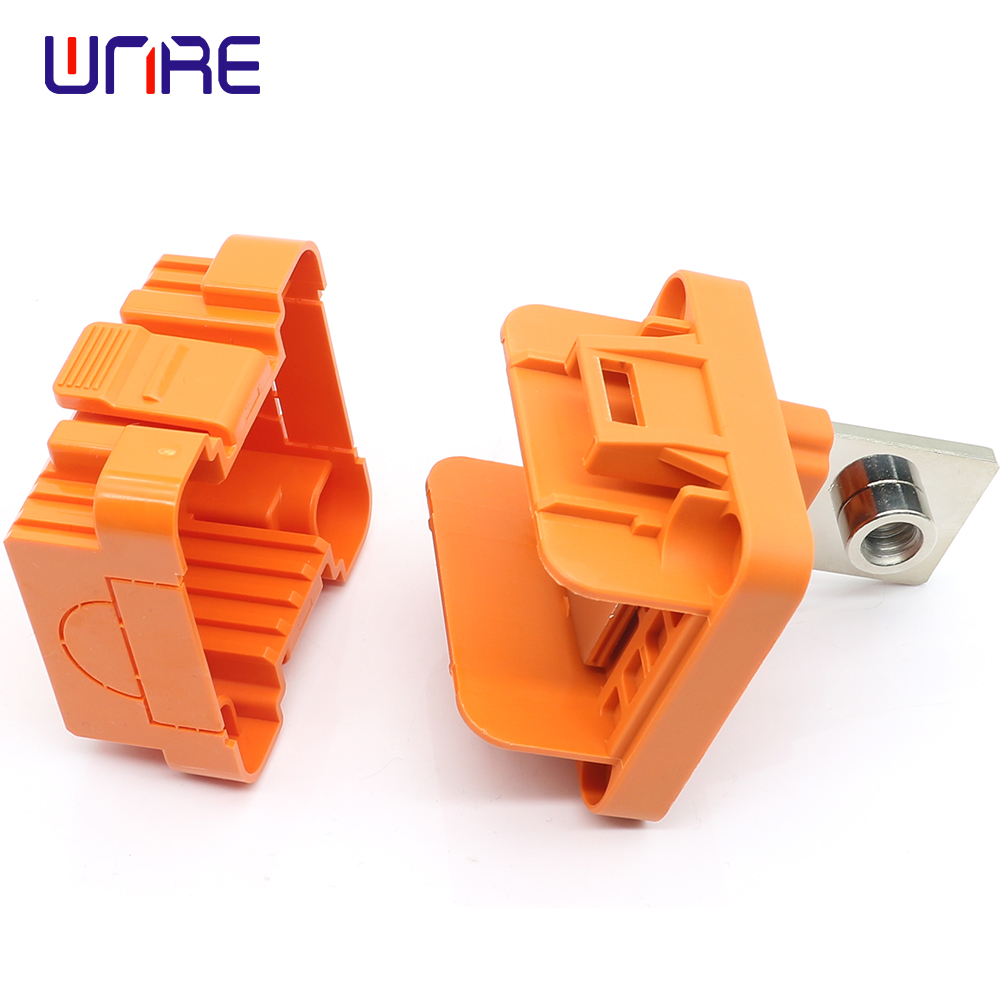

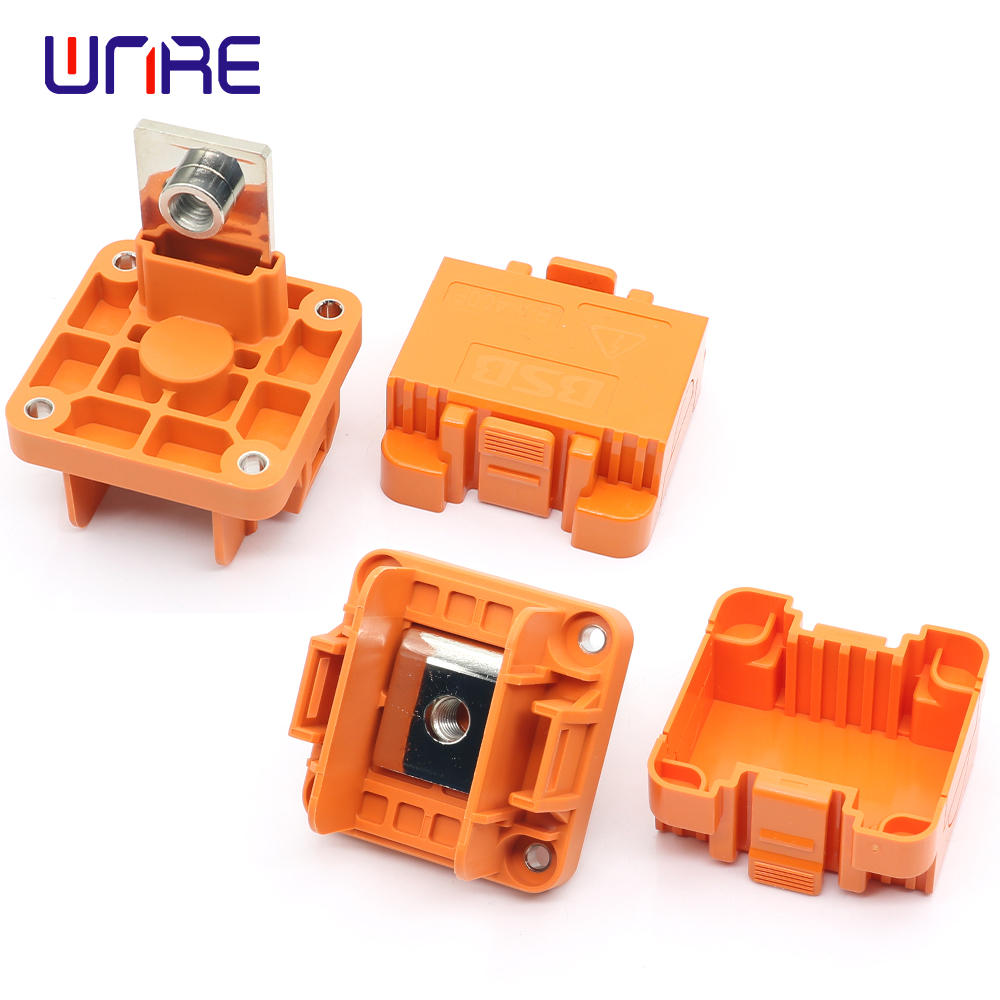

Lithium Battery Energy Storage Copper Connector 350A high voltage connector

Short Description:

Package including1set (orange and black)

Product Parameter

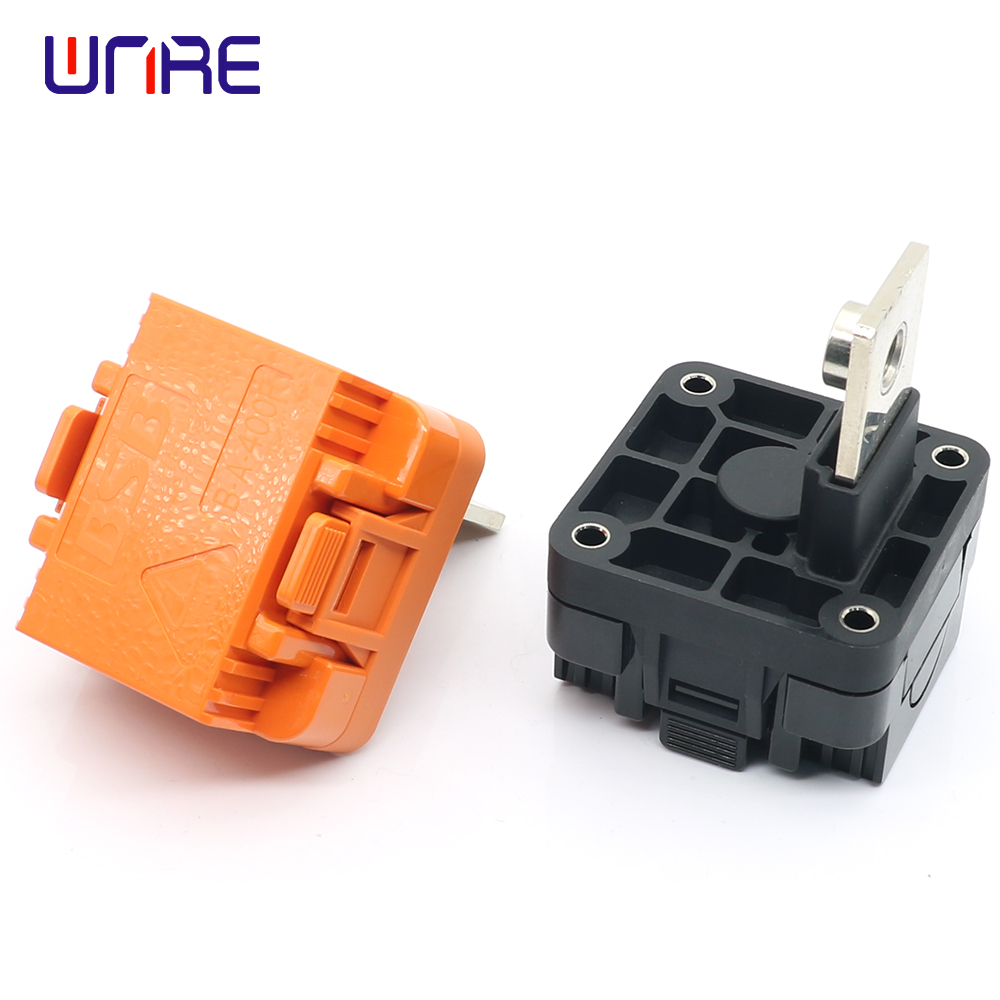

Model: B‐A‐400F‐M08‐N‐B ( “+” orange), B‐A‐400F‐M08‐AB ( -black)

Operating temperature: ‐40℃ ~ 125℃

Use relative humidity: 25℃, 5% ~ 95%

Storage temperature: ‐5℃ ~ 30℃

Salt spray resistance: 48h

Protection class: IP54

Rated voltage: 1500V/DC

Rated current: 350A MAX

Dielectric strength: 5000V AC (50Hz, RMS) withstand voltage for 1min

Insulation resistance: Test voltage 1500V DC, normal condition ≥5000MΩ, hot and humid state ≥20MΩ

Key error proof (black/orange)

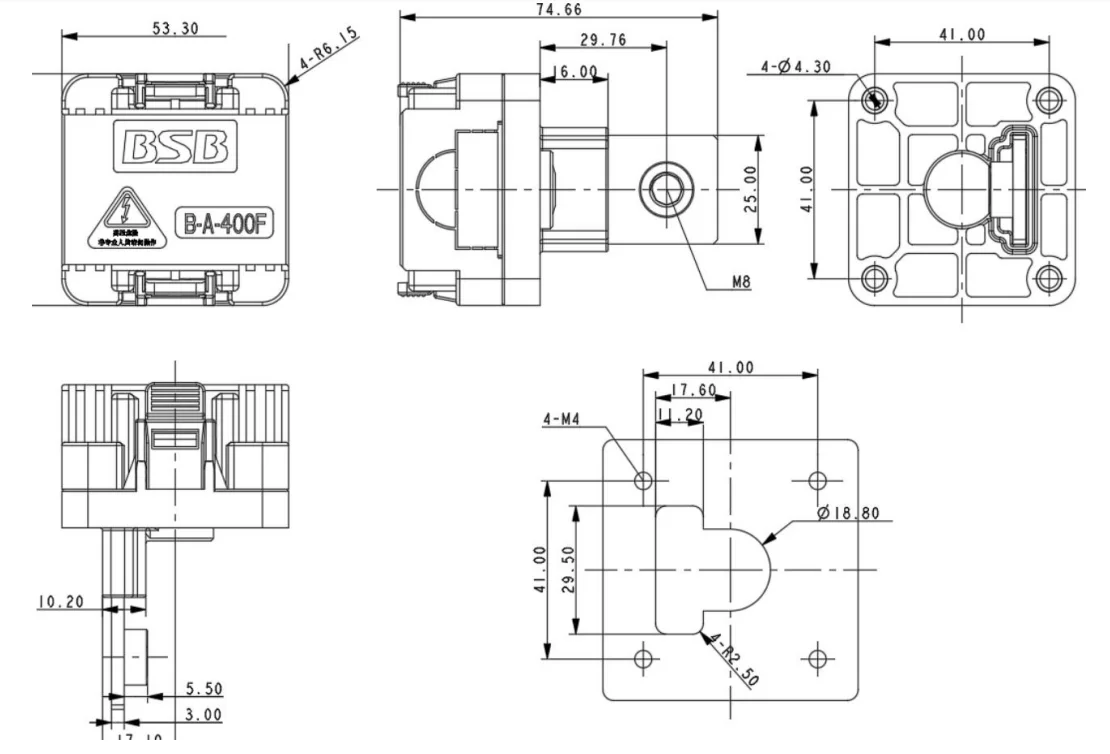

Note: M8 threaded hole, recommended torque: 7-8N.M


Product Detail

Product Tags

Note:

1.Please allow ±0-3mm difference due to manual measurement.

2.Due to the effects of shooting, the photos may not reflect the true colors, subject to the actual product.

Storage requirement

1. Do not place product packing cases too many times to prevent damage to the outer packing

2. Keep the ambient temperature between ‐5 ° C and 30 ° C and the relative humidity below 60%

3. Product storage period: 1 year, beyond the storage period, the connector needs to be reinspected to test whether the relevant performance is qualified

4. Do not place the product near chemicals to prevent corrosion of the product

图片4 图片5
