M18 M19 M25 Electric Bike Electromobile Charging Port Female And Male Charging/Discharging Socket Power Plug Connector

Short Description:

Connector series power charging plug

 Operating conditions: ambient temperature: -25 ~ 70° Relative humidity: 95% (40°)

Contact resistance: ≤10mΩ

 Insulation resistance: ≥100mΩ

Flame retardant grade: UL94-V0


Product Detail

Product Tags

M18 M19 M25 Electric Bike Electromobile Charging Port Female And Male Charging/Discharging Socket Power Plug Connector

Product specifications:

1, operating conditions: ambient temperature: -25 ~ 70° Relative humidity: 95% (40°)

2, contact resistance: ≤10mΩ

3, insulation resistance: ≥100mΩ

4, flame retardant grade: UL94-V0

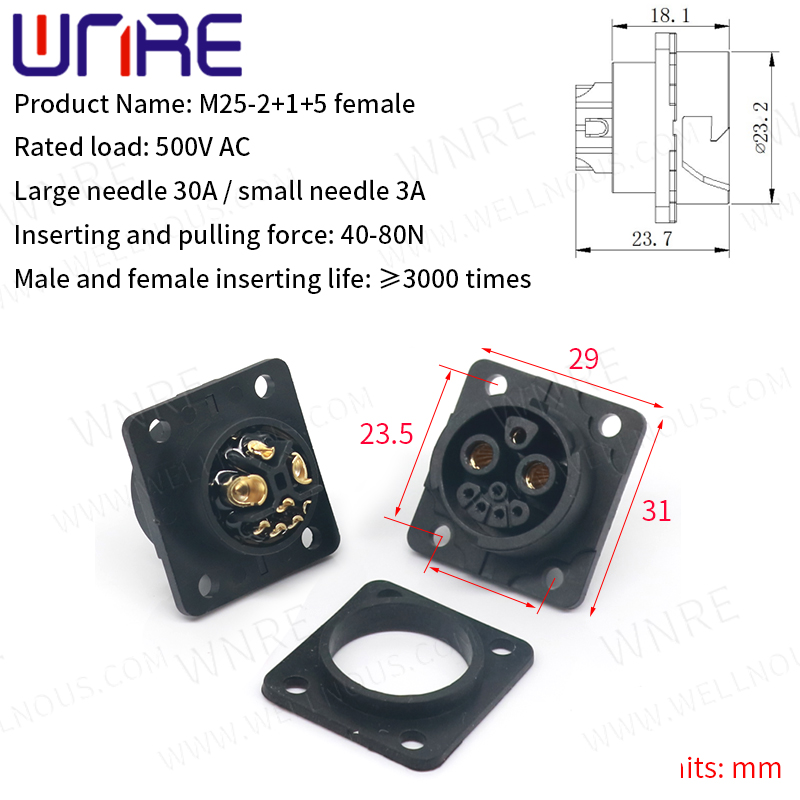

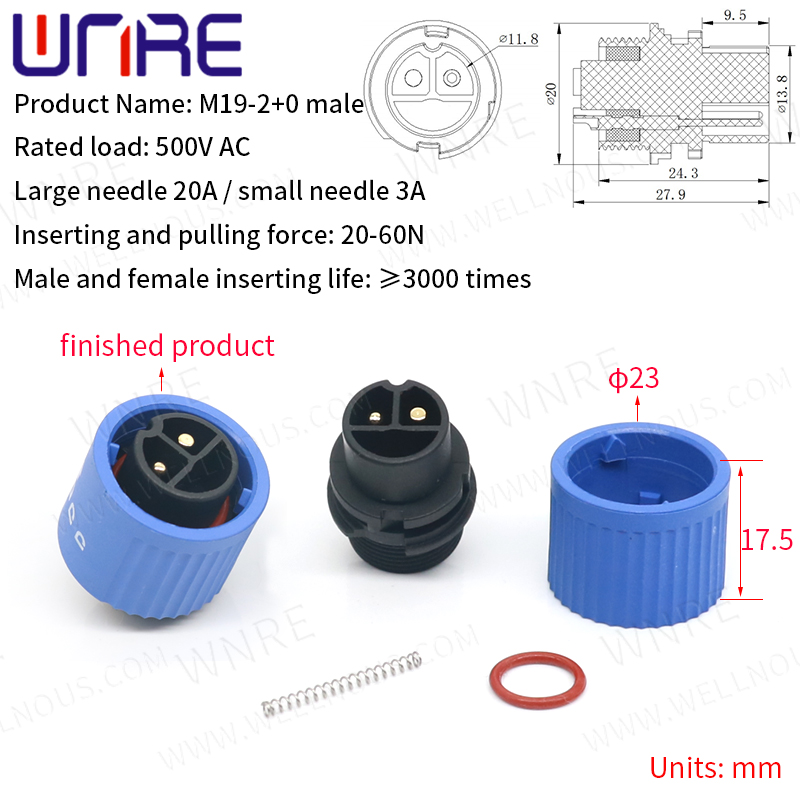

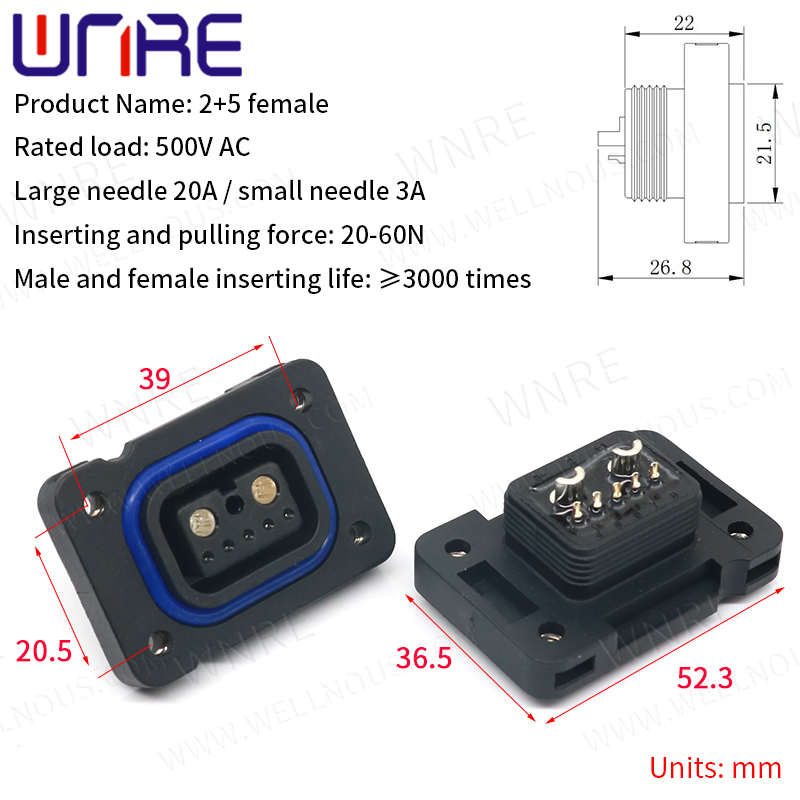

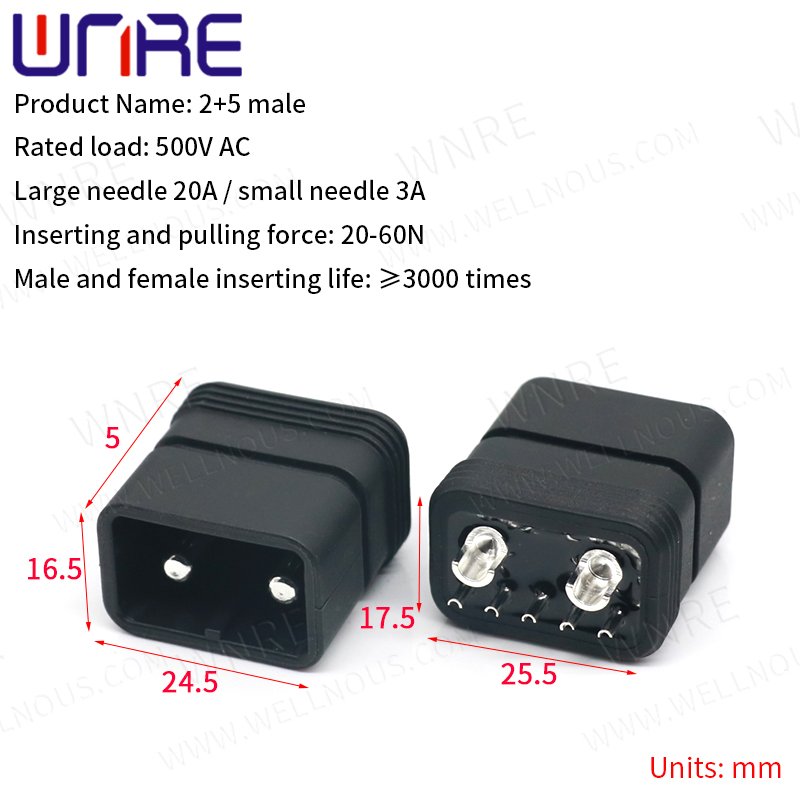

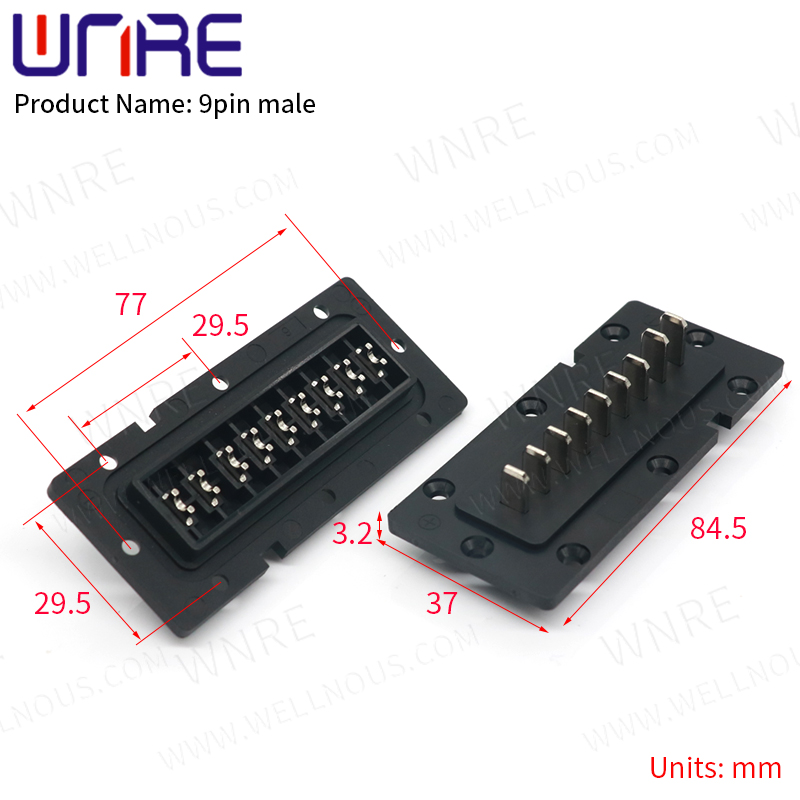

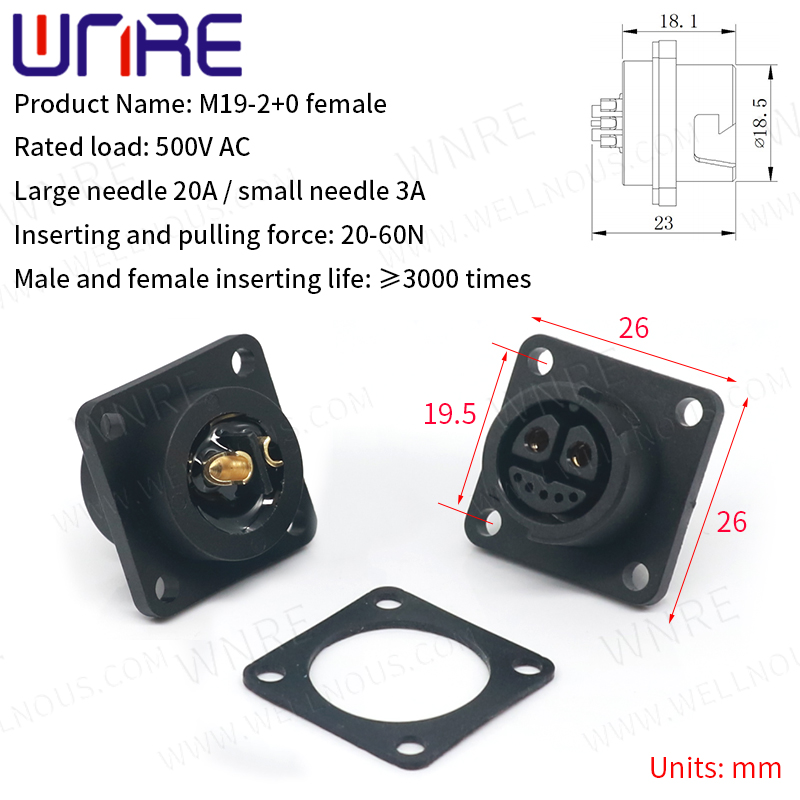

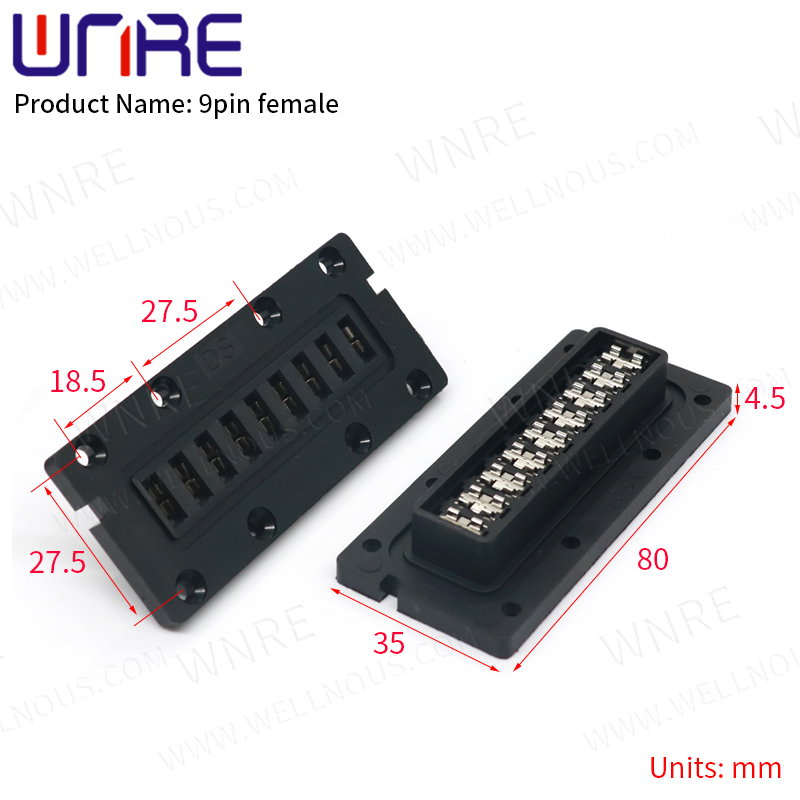

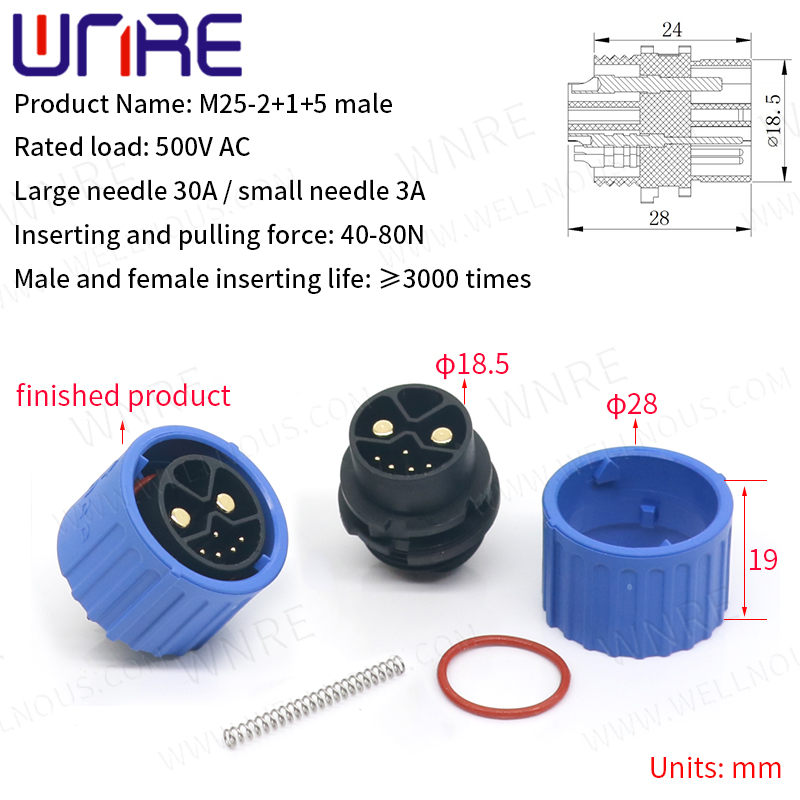

2+5 male 2+5 female 3+10 male 3+10 female M18-2+6 male M18-2+6 female M19-2+0 male M19-2+0 female M25-2+1+5 male M25-2+1+5 female 9pin male 9pin female

Packing & Delivery

Packing

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery

Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
