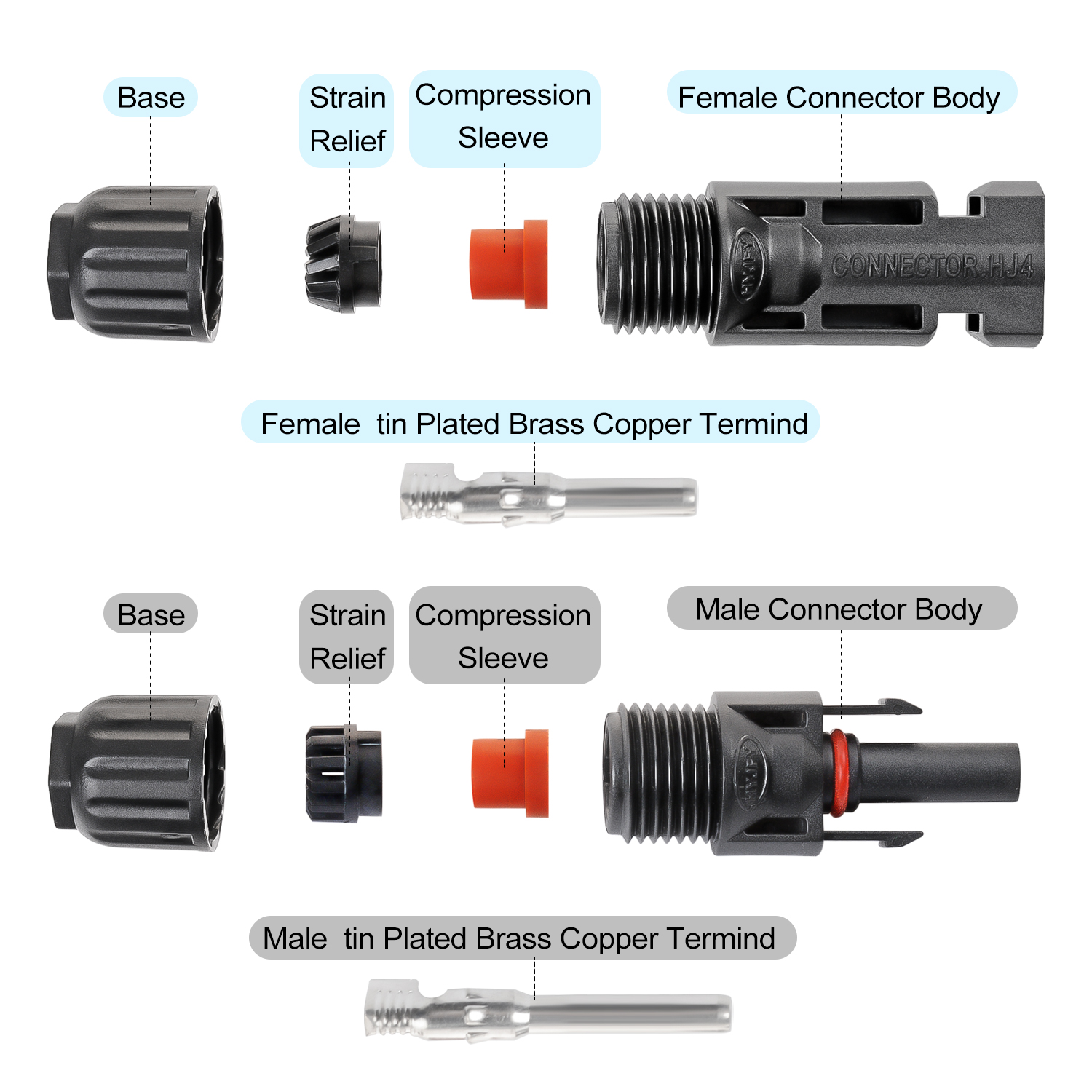

MC4 30A 1000/1500V Solar Plug Cable Connectors Male And Female For Solar Panels and Photovoltaic Systems

Short Description:

Model Number: PV-30A

Rated voltage: 1000 V / 1500 V

Rated current: 30A

Protection grade: IP67

Contact material: Copper, tin-plated

Operating temperature: -40°C ~ +90°C

Flame class: UL94-HB / UL94-V0

Contact resistance: 0.5mΩ

Suitable for cables: 10, 12, 14 AWG (2.5mm²/4mm²/6mm²)

Locking system: Snap-in

Send email to us

Product Detail

Product Tags

Model Number	PV-30A	Product Name	Solar Connector
Rated voltage	1000 V / 1500 V	Rated current	30A
Protection grade	IP67	Contact material	Copper, tin-plated
Operating temperature	-40°C ~ +90°C	Flame class	UL94-HB / UL94-V0
Contact resistance	0.5mΩ	Locking system	Snap-in
Suitable for cables	10, 12, 14 AWG (2.5mm²/4mm²/6mm²)

Feature:
Simple on-site processing.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles .
High current carrying capacity.
TUV and UL approved.

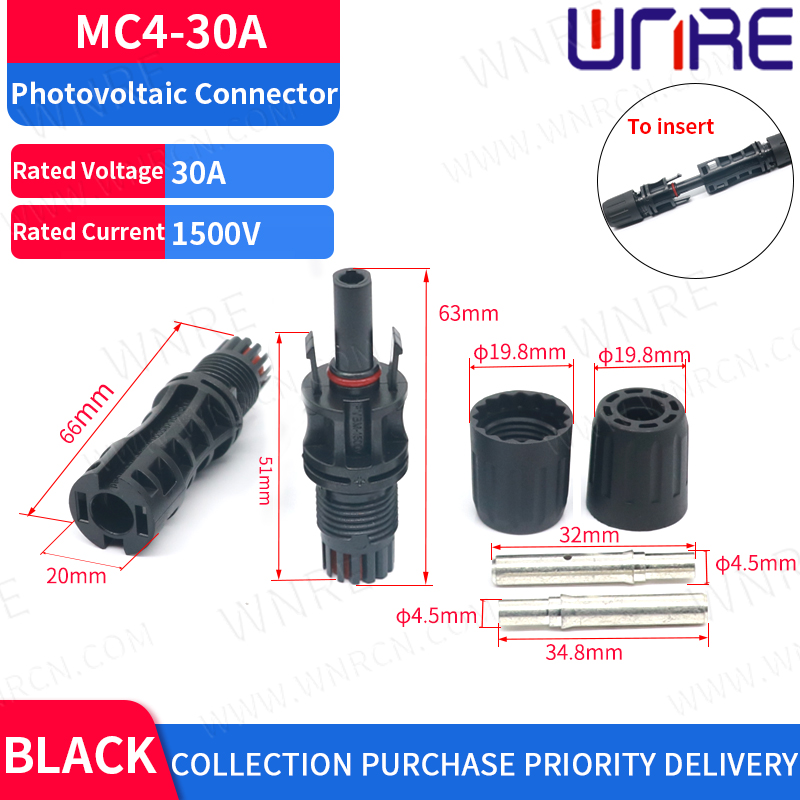

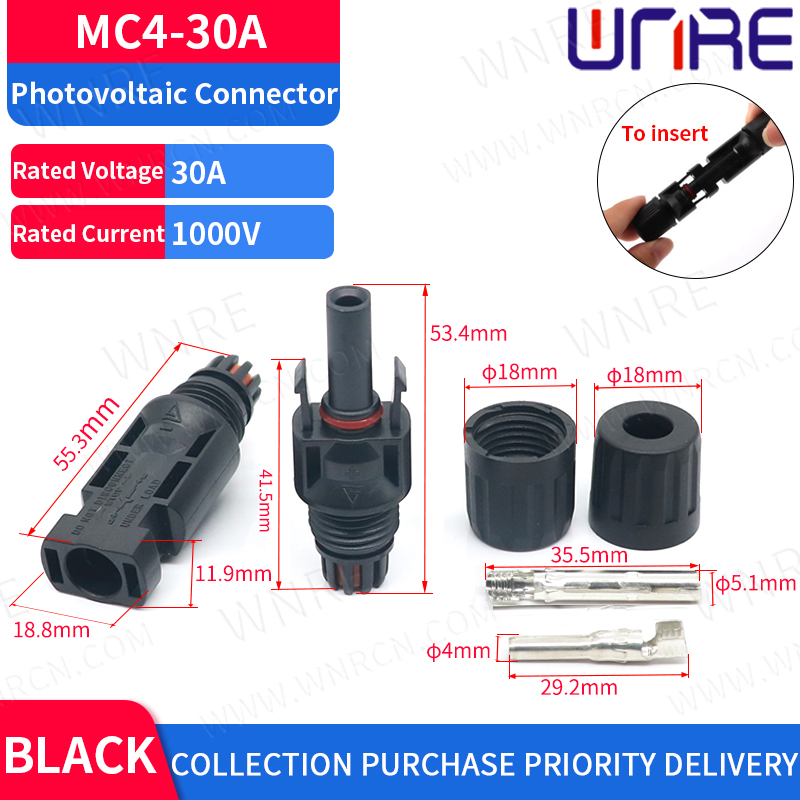

MC4 MC4-30A-1000V MC4-30A-1500V

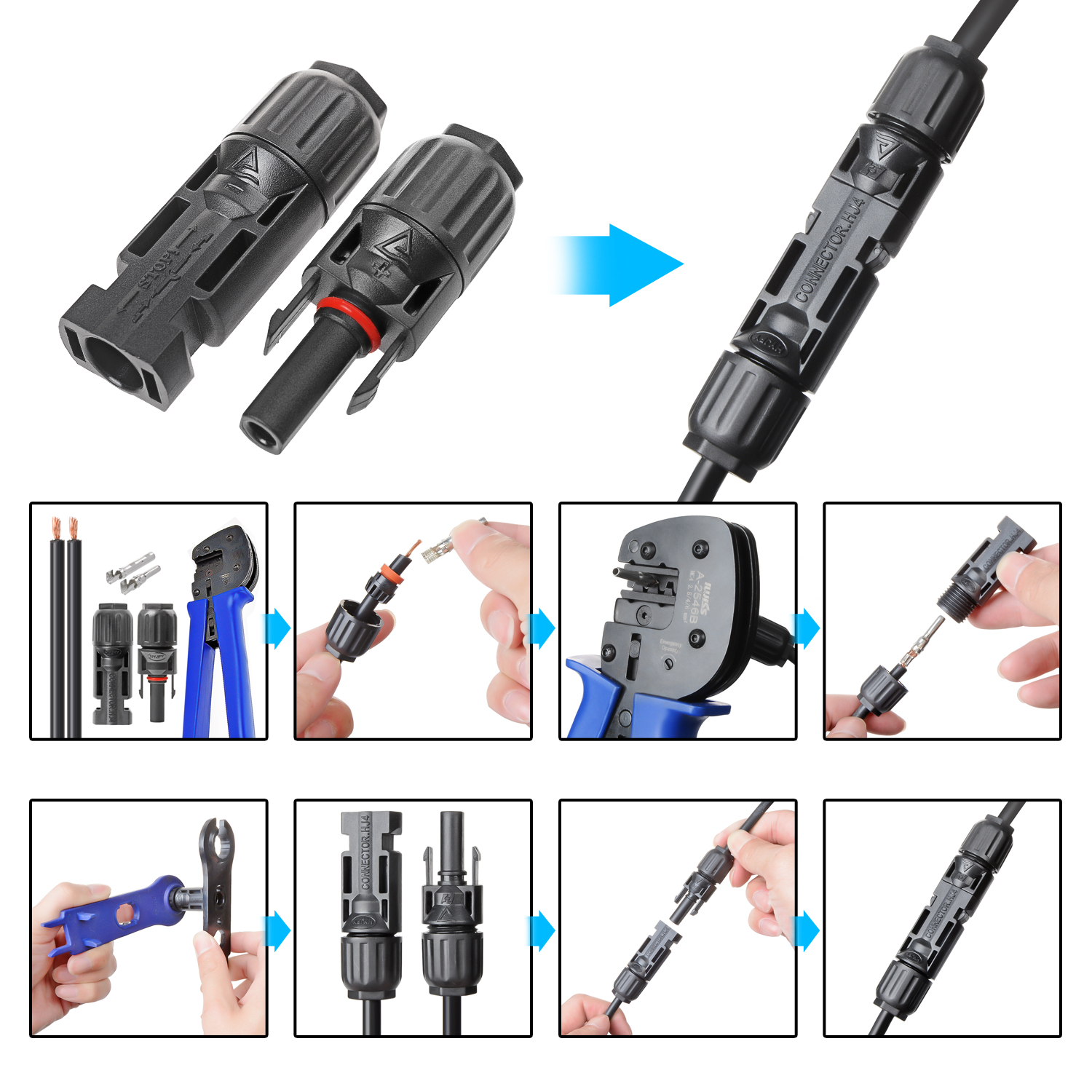

Installation process is shown as follows:
MC4..
