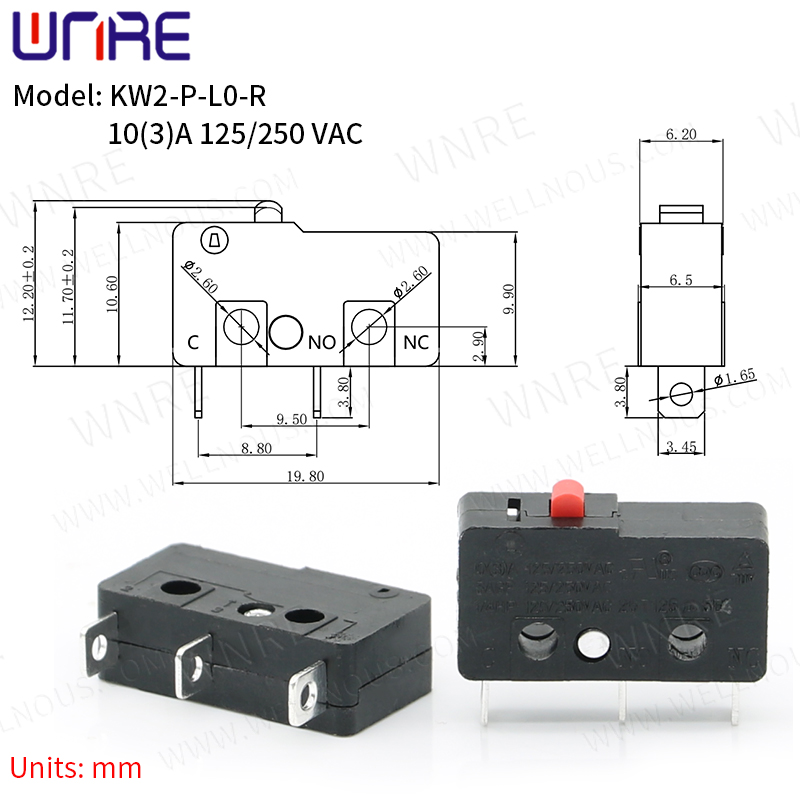

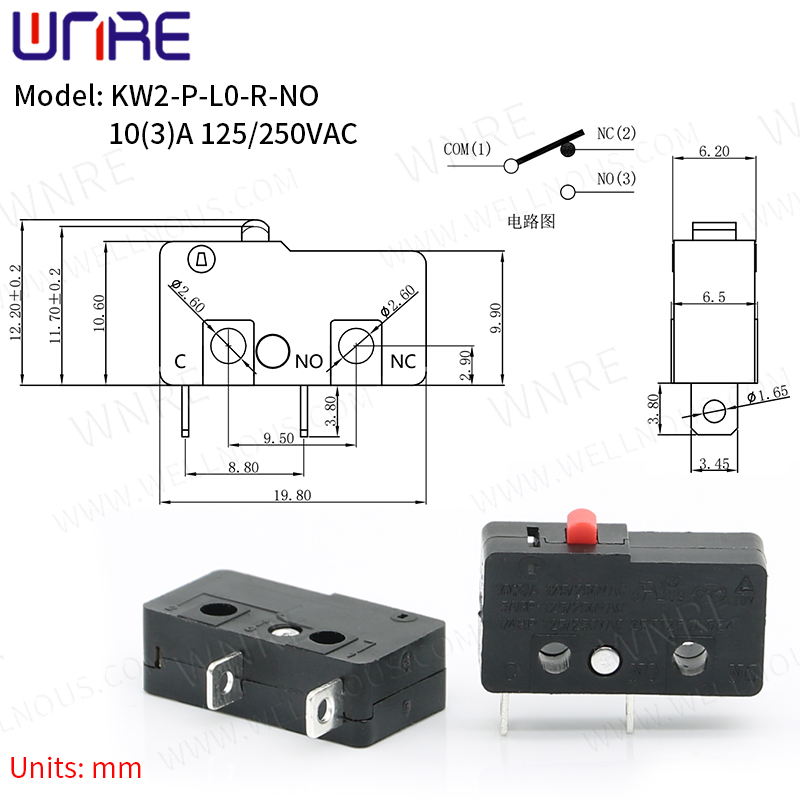

Micro switch Copper Contact 3A/5A 125/250V 2/3Pin Mini Limit Switch Quick Button Switch Black
Micro switch Copper Contact 3A/5A 125/250V 2/3Pin Mini Limit Switch Quick Button Switch Black
Product name: Micro Switch
Rating : 10(3)A/5A 125/250VAC
Contact Resistance: 500mΩ MAX
Insulation Resistance:>100mΩ DC500V
Withstand Voltage: AC1500V 1min
Soldering Temper: 235℃± 5℃ 5s
Mechanical Life: 100,000 cycles
Ambient Temper.Used: -25℃ to +105℃
Ambient Humidity.Used: ≤85% at +40℃
Operating Force: 120-220gf max
Packing & Delivery
Packing
1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request
Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.
Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
