Mouse Encoder 11mm Wheel Decoder Mouse Navigation Switch Roller Encoder Connector
| Product Name | 11mm Mouse Encoder , Roller encoder | Model Number | BM10-11B-1BT |
| Operating Temperature Range | -20ºC~+70ºC | Storage Temperature Range | - 30ºC ~ 80ºC |
| Rating | DC10V 1mA | Mounting Height | 11. 0士0.1mm |
| Pul ses/rotation | 12pulse/360° | Operating Force | 20±5gf.cm |
| Rotational Life | 300,000 cycles min | Certification | ROHS |
Product information
General Characteristics
1.Application: This specification is applied to the miniature quick encoder for general applications.
2.Operating Temperature Range: -20℃～70℃（Normal humidity, normal air pressure）
3.Storage Temperature Range:-30℃～80℃（Normal humidity, normal air pressure）
4.Test Conditions: Unless otherwise specified, the atmospheric conditions for making measurements and tests are as follows:
Ambient Temperature: 5-35℃
Relative Humidity: 45-85% RH
Air Pressure: 86-106Kpa (860-1060mbar)
Appearance: The encoder shall have good finishing, and no rust, crack or plating defects.

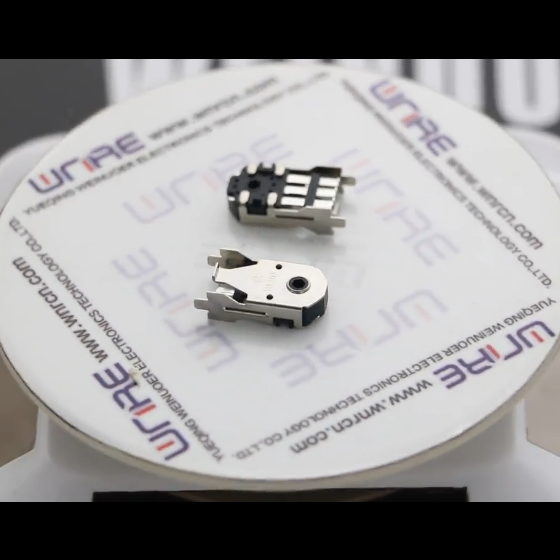

Product display：
Product drawing:
Packing & Delivery
Packing
1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request
Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.
Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
