ND2+6 2+0 Waterproof Plug Electric Bike Portable Charging Port And Discharging Socket Male Female

Short Description:

Model Number: ND2+6 and ND2+0

Product Name: ND electric car portable charging and discharging waterproof plug

Gender: Female / Male

Sustained current: 30-50A

Contact material: Brass with Silver/ Gold Plating

Operation Temp: -30℃ ~ +70℃

Waterproof: IP67

Application: Sharing electric bikes/motorcycles,new energy vehicles, high-probability charging piles, etc


Product Detail

Product Tags

Model Number ND2+6 / ND2+0 Type Male / Female
Cable Length Standard 500mm,can be customized Contact material Brass with Silver/ Gold Plating
Production Processing Precision Injection molding Waterproof IP67
Flammability
UL94-V0 Sustained current
30-50A

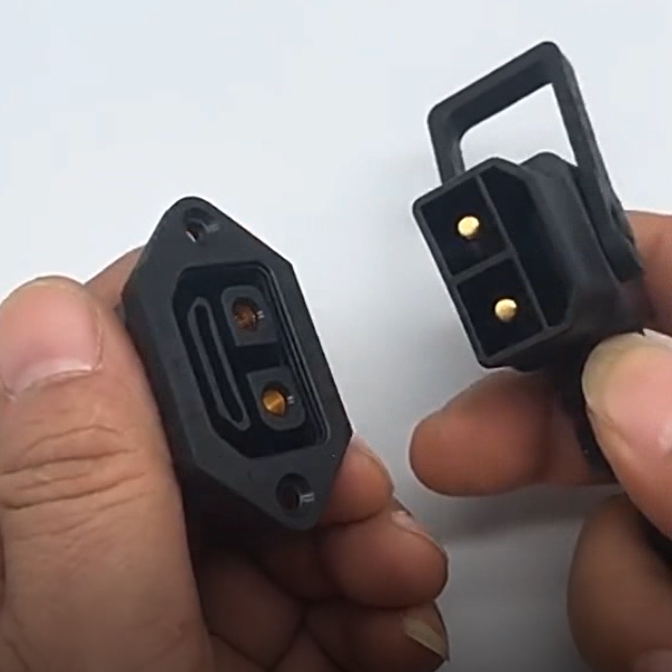

This is a ND series electric car portable charge and discharge waterproof plug, there are two styles, respectively: ND2+6 male or female plug and ND2+0 male or female plug.

Difference: ND2+6 has 2 pins (large) +6 pins (small), while ND2+0 has 2 pins (large).

It is very convenient to use. Just plug the male and female plug together, and the installation is very firm.

Not only waterproof, but also other protection: dust-proof, moisture-proof, anti vibration, high temperature resistance and oil corrosion resistance.

Application: Shared electric bikes/motorcycles, new energy vehicles, high probability charging piles, etc.

ND2+6 maleND2+6 femaleND2+0 maleND2+0 female

Packing

1: Neutral packing: bulk package in poly bag +inner box +carton
2: Upon customers' request
