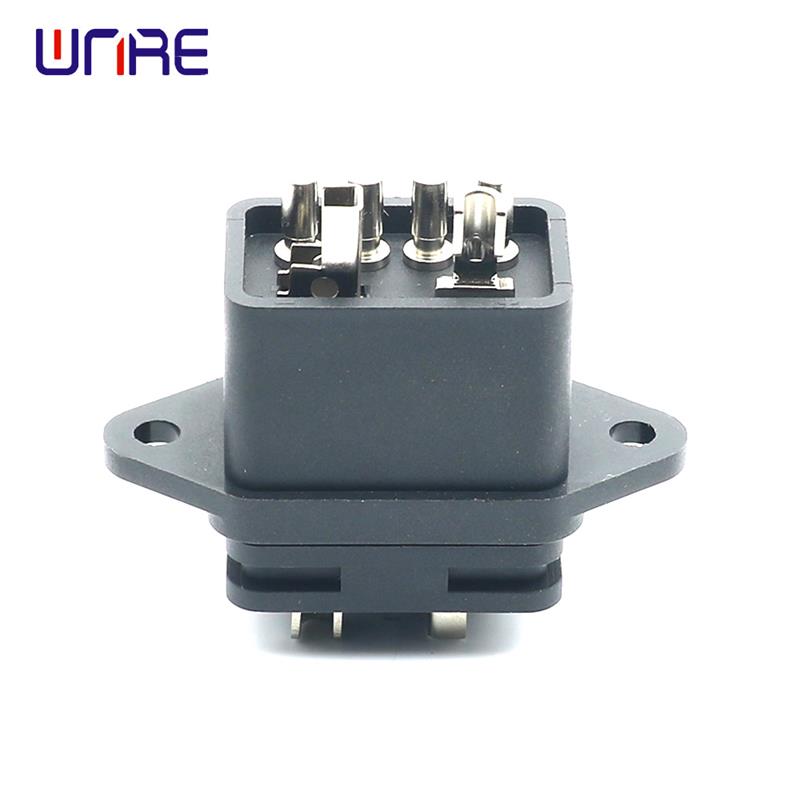

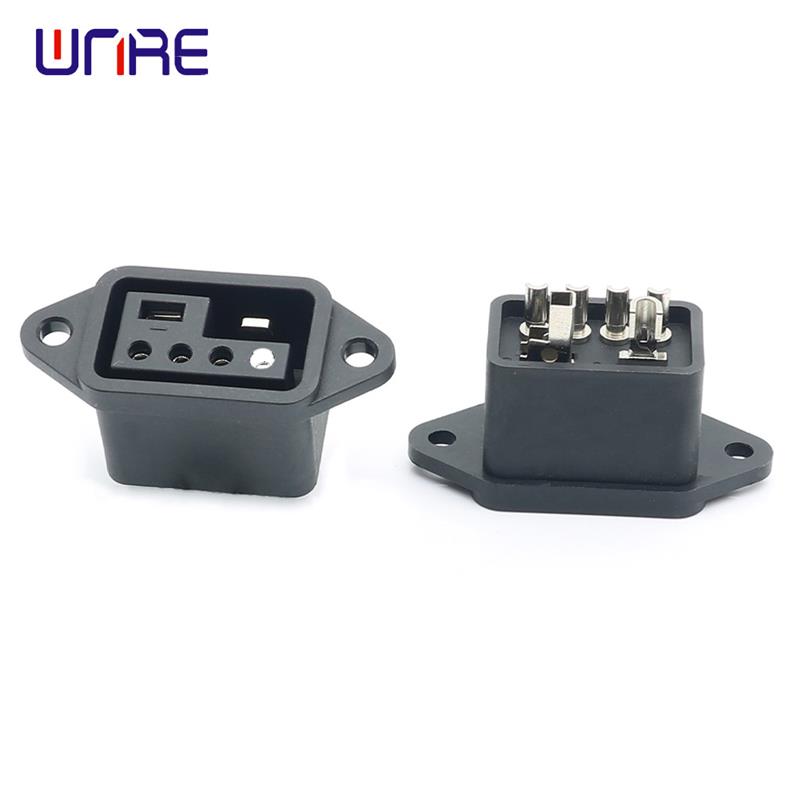

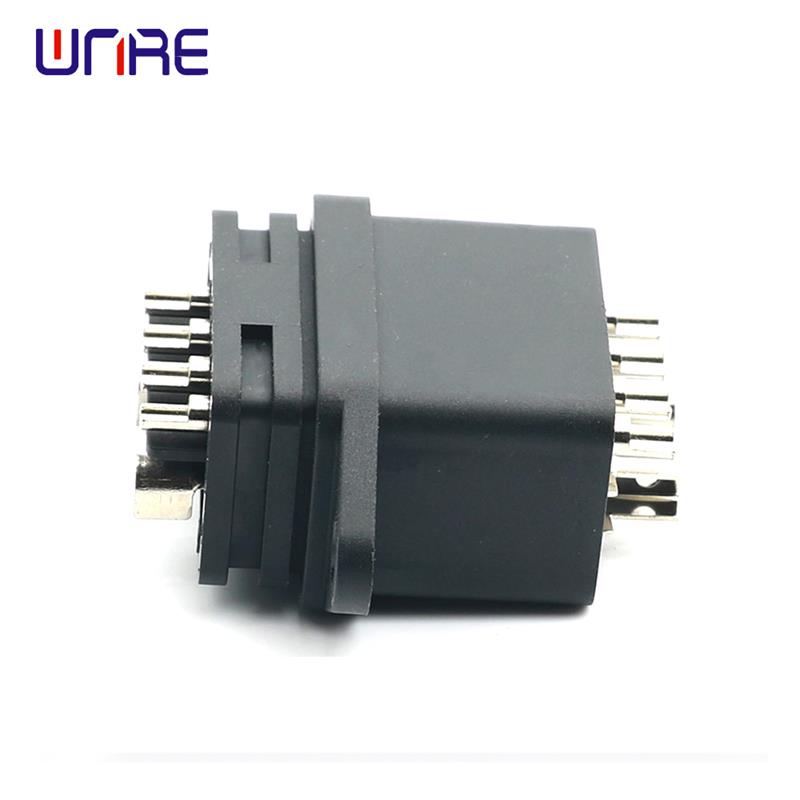

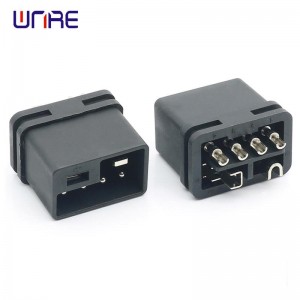

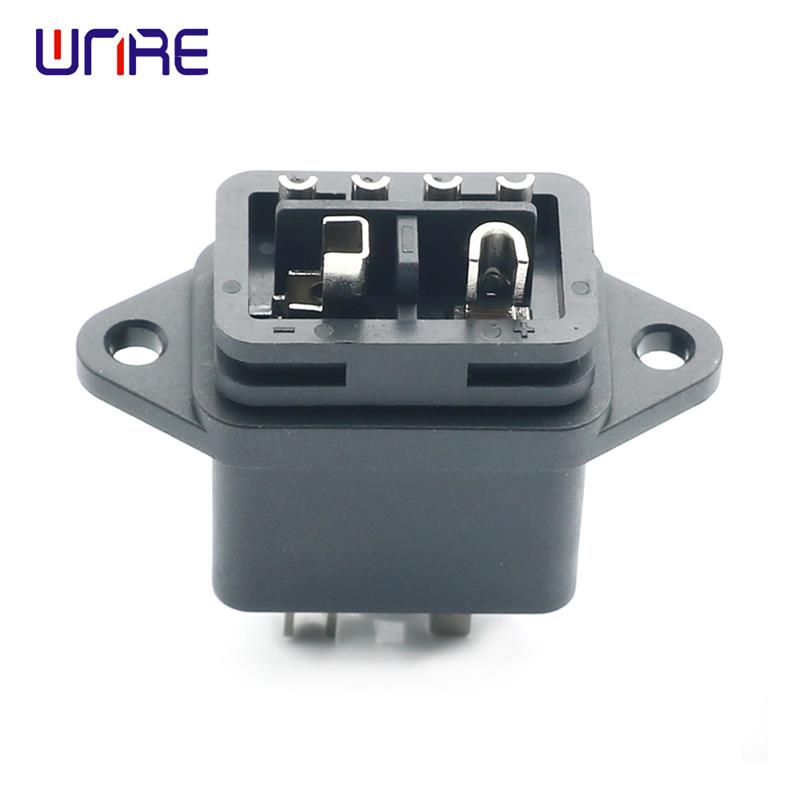

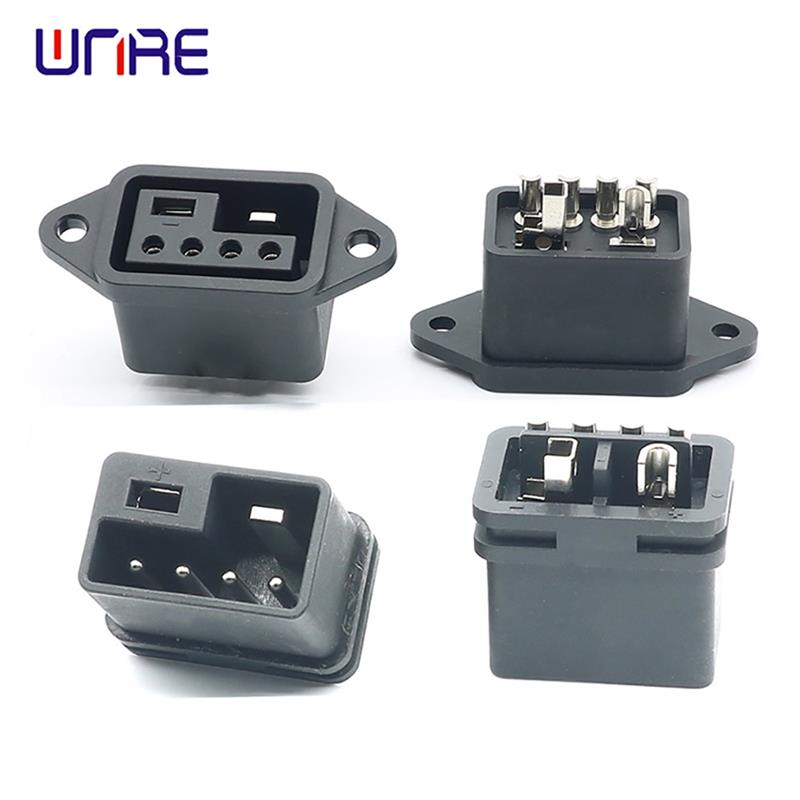

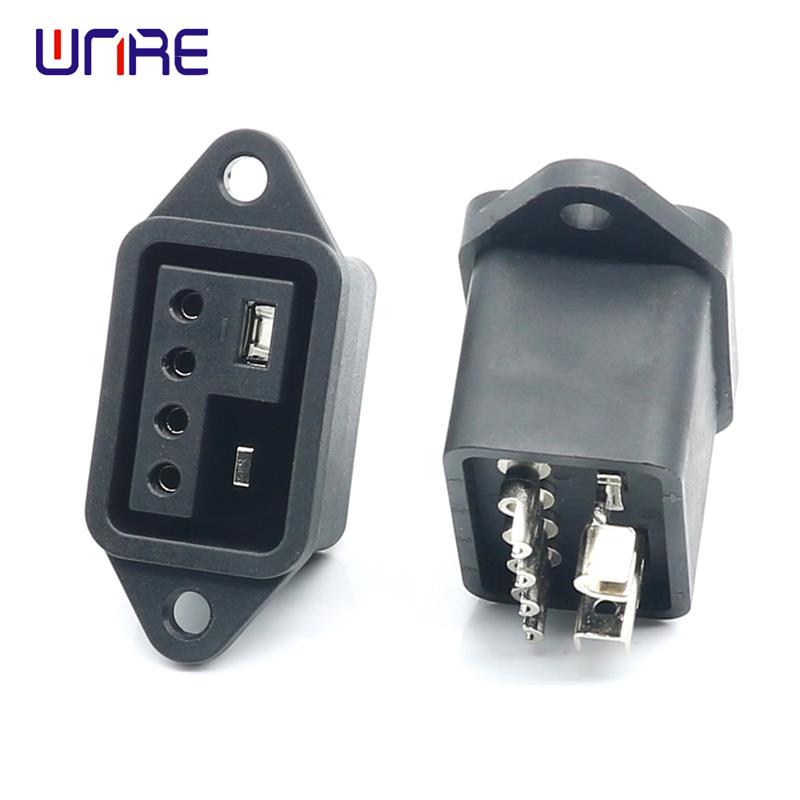

New National Standard Electric Bicycle Socket High Current Male And Female Interface High-temperature Resistant Charging Product DY-R645AM

Short Description:

Product model: DY-R645AM,DY-R645AG

Metal material: Copper

Shell material: PPA nylon

Current: PPA nylon

Voltage: 250V

Color: Black

Temperature range: -25~80℃

Withstand voltage: AC1000V(50Hz) /min

Hole size: Φ2.2

Contact resistance: ≤20MΩ

Insulation resistance: ≥500MΩ

Inserting and pulling force: 10-50N

Life span: 3,000 times


Product Detail

Product Tags

Product characteristics

1. DC power sockets have high carrying power and are not prone to heating.

2. The inner core of the socket is made of high-temperature resistant plastic material, and the DC power socket is not easily deformed under high temperatures.

3. The socket spring adopts high elastic phosphor copper data, with no fatigue in insertion and extraction times, and excellent tactile sensation, which is not easy to generate sparks.

Product drawing

DY-R645AM

Application scenario

industrial equipment, household appliances, Electrical charging socket,Industrial socket, Electronics, Power socket, battery car, Rice cooker
