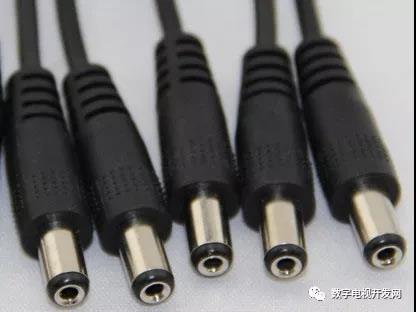

Power adapter DC plug is also referred to as DC head, which is a connector for the power adapter to connect with the products it supplies.
It is composed of tuning fork DC head by tuning fork type metal contact shrapnel or directly inserted DC head by metal hollow cylindrical contact body, insulation base, transverse socket, longitudinal socket, directional keyway, etc. Connect with the inside and outside of the socket to energize and supply power to the products it supplies, so that it works normally.

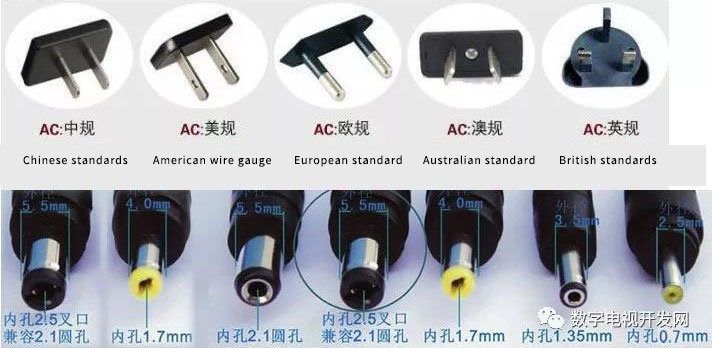

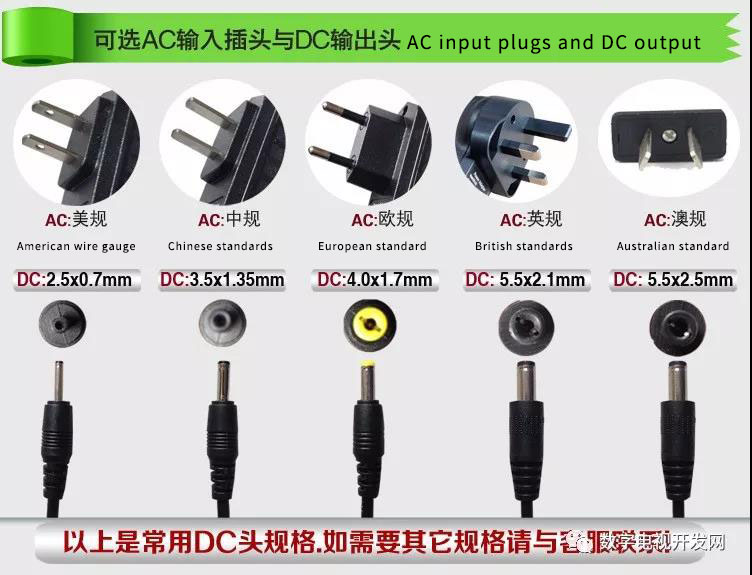

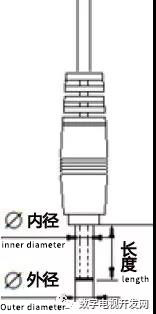

The inner diameter and outer diameter specifications of the DC plug of the power adapter are (the unit is MM) :
2.0 * 0.7, 0.7, 2.35 * 2.35 * 1.1, 0.7, 3.5 * 2.5 * 1.1, 1.35, 4.0 * 3.5 * 1.7, 2.1, 5.5 * 5.5 * 2.5, 1.7, 3.2 * 4.75 * 0.9, 1.1, 2.0 * 3.0 * 0.6… And so on.
The shape of the power adapter DC plug is generally divided into straight head and elbow, and the matching DC socket is divided into two kinds of packaging, SMT patch packaging and DIP plug-in packaging.
Power adapter DC plugs and DC power socket generally applied to the audio products, digital products, monitoring products, communication products, household appliances products, security products, toys products, computer peripheral products, fitness and health products and medical products, video products, IT products and so on products.
