The application of power connector is very wide, connector industry people in the work often come into contact with a class.
There are three main types of power connectors: light, medium and heavy, and each category title refers to how much voltage the connector can handle.

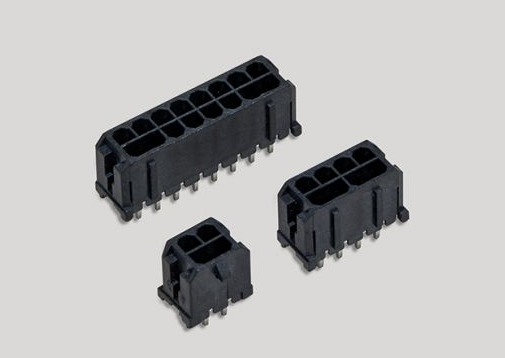

1, Light power connector: can carry low current up to 250 VOLTS (V).

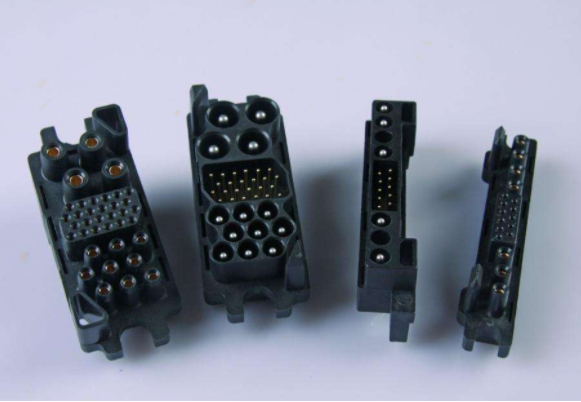

2, medium power connector: can carry higher level current up to 1,000 V.

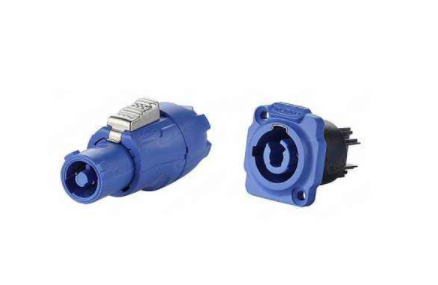

3. Heavy-duty power connector: carries high level current within the range of hundreds of kilovolts (kV).
In addition to the above three broad categories of power connectors, there are many separate connectors that fall under each heading. Some of these titles include: AC connectors, DC connectors, wire connectors, blade connectors, plug and socket connectors, insulation piercing connectors.

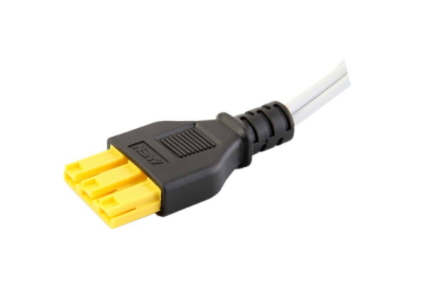

5.AC connector:

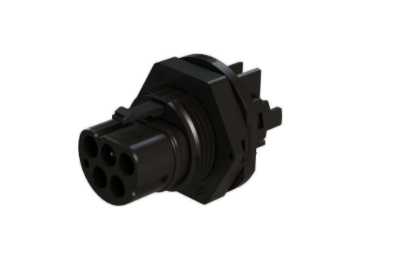

6. Ac power connector
It is used to connect the device to a wall socket for power supply. In the type of AC connector, power plugs are used for standard-size equipment, while industrial AC power plugs are used for larger industrial applications.

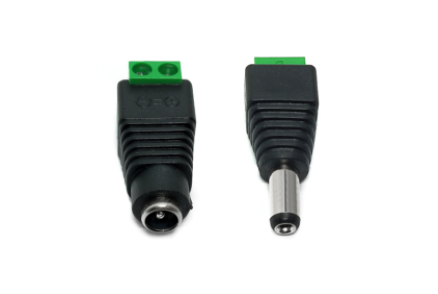

7, DC connector:
Unlike AC connectors, DC connectors are not standardized. The DC plug is a variant of the DC connector that powers smaller electronic devices. Since THERE are different standards for DC plugs, do not accidentally use incompatible variants.

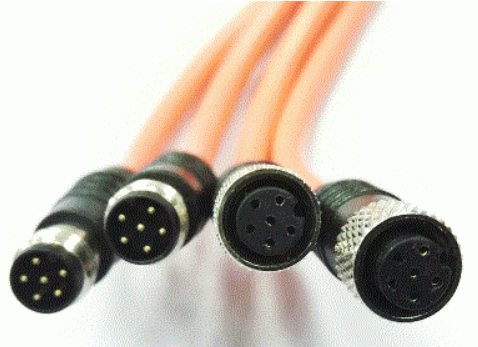

8. Wire connector:
The purpose of a wire connector is to join two or more wires together at a common connection point. Lug, crip, set screw, and open bolt types are examples of this variation.

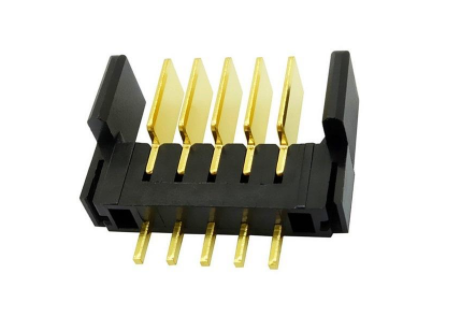

9. Blade connector:
The blade connector has a single wire connection – the blade connector is inserted into the blade socket and connects when the wire of the blade connector is in contact with the wire of the receiver.

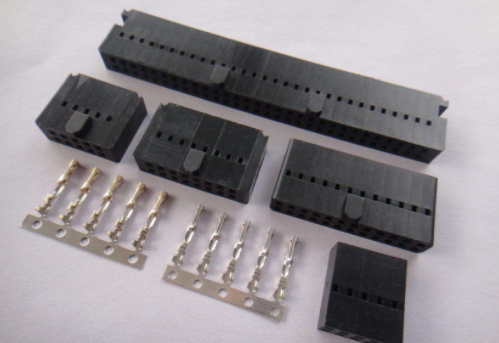

10, plug and socket connector:
Plug and socket connectors are made up of male and female components that fit closely together. Plug, convex part, consisting of a number of pins and pins that lock securely to the corresponding contacts when inserted into the socket.

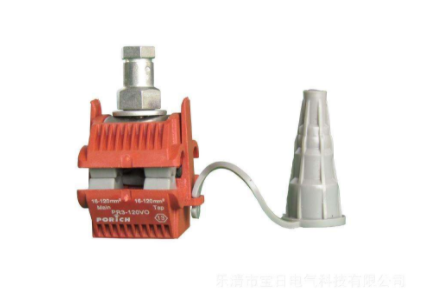

11. Insulation puncture connector:
Insulated puncture connectors are useful because they do not require uncovered wires. Instead, the fully covered wire is inserted into the connector, and when the wire slides into place, a small device inside the opening removes the wire covering. The uncovered tip of the wire then makes contact with the receiver and transmits power.
There are many types and shapes of connectors, but their common purpose is to transfer current to keep the product running properly. A small connector, easy to replace, more convenient maintenance work.
