Now is the era of the Internet, every household basically has a computer, RJ45 crystal head and network cable is an important material to connect the network, in the network transmission has an irreplaceable role. So how to connect the RJ45 crystal head wire? Next, we use text and text to explain the steps and sequence of wiring.
One, determine the wiring method of RJ45 crystal head
If two PCs are connected with peer to peer network directly by network cable, the connection method should be used for T568A at one end and T568B at the other end. If the network is formed through a network hub or network switch, the network cable connection method should be the same as T568A or T568B, and the common connection method is T568B.

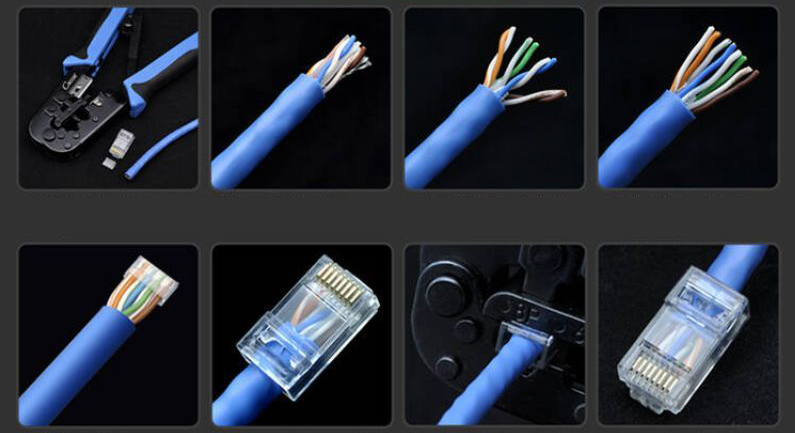

Two, the specific wiring steps are as follows
1. Use the net wire tongs to peel off the outer skin of the net wire, exposing 8 small copper wires of 2-3 cm.

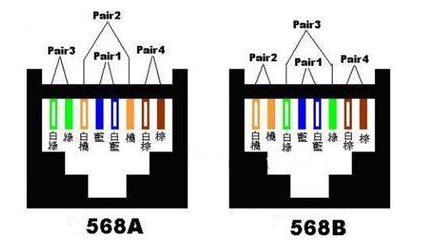

2. Line Sequence. The arrangement order of T568A is: green white, green, orange white, blue, blue white, orange, brown white, brown. The sequence of T568B is: orange white, orange, green white, blue, blue white, green, brown white, brown. Cut the arranged 8 small copper wires flat and the length is 1cm.
3. Connect the wire to the RJ45 crystal head and tighten it with network cable pliers. Give the pliers a few more times.
Three, RJ45 crystal head mesh formula
T568B wiring: orange, blue, green and brown, three to five interchange.
Scan the network cables from left to right as orange white, orange, blue white, blue, green white, green, brown white, brown, and then swap the third and fifth wires, pinch them flat and cut them even.
The crystal head contact piece is up, the line mouth is right, the left hand holds the head, the right hand delivers the wire, after the top of the wire, the wire clamp is sent to press the wire, the strength is moderate and the wire is in place.
T568A wiring: green, blue, orange and brown, three to five interchange.
Arrange the network wires from left to right as green white, green, blue white, blue, orange white, orange, brown white, brown, and then swap the third and fifth wires, pinch them flat and cut them even.
The crystal head contact piece is up, the line mouth is right, the left hand holds the head, the right hand delivers the wire, after the top of the wire, the wire clamp is sent to press the wire, the strength is moderate and the wire is in place.
