Tool switch, also known as "electric tool switch", is the product of the rapid development of modern automation. In simple terms, intelligent circuit is applied to power tools. It is a series of operation of power tools integrated into a switch, and achieves the requirements of convenience, safety, environmental protection and so on.
Rated current: 4A/6A/8A/10A/16A/20A
Rated voltage: 110V/220V/230V
Mechanical life: 100,000 times (standard)
Electrical life: 50,000 cycles (standard)
The main categories are:
Governor: used to control the speed of the motor, according to the dust-proof function is divided into dust-proof governor and ordinary governor.
Trigger switch: without governor, with self-locking cap and trigger; According to the application environment, it is divided into DC trigger and AC trigger.
Ship switch: the shape of the trigger is the same as that of the ship, including I and O two switches, according to whether the dust cap is equipped and divided into dustproof and ordinary two switches.
Single speed switch: single speed control
Lateral power soft start switch: Constant power starting power tool, with professional control chip, with overload protection, optional soft start time: 2~3 seconds, 3~4 seconds, 4~5 seconds, optional power range: 50~1500W or above.
Large current micro-switch: the micro-switch has the function of quick connection and quick break. It can be divided into dust-proof and non-dust-proof according to the dust-proof demand.

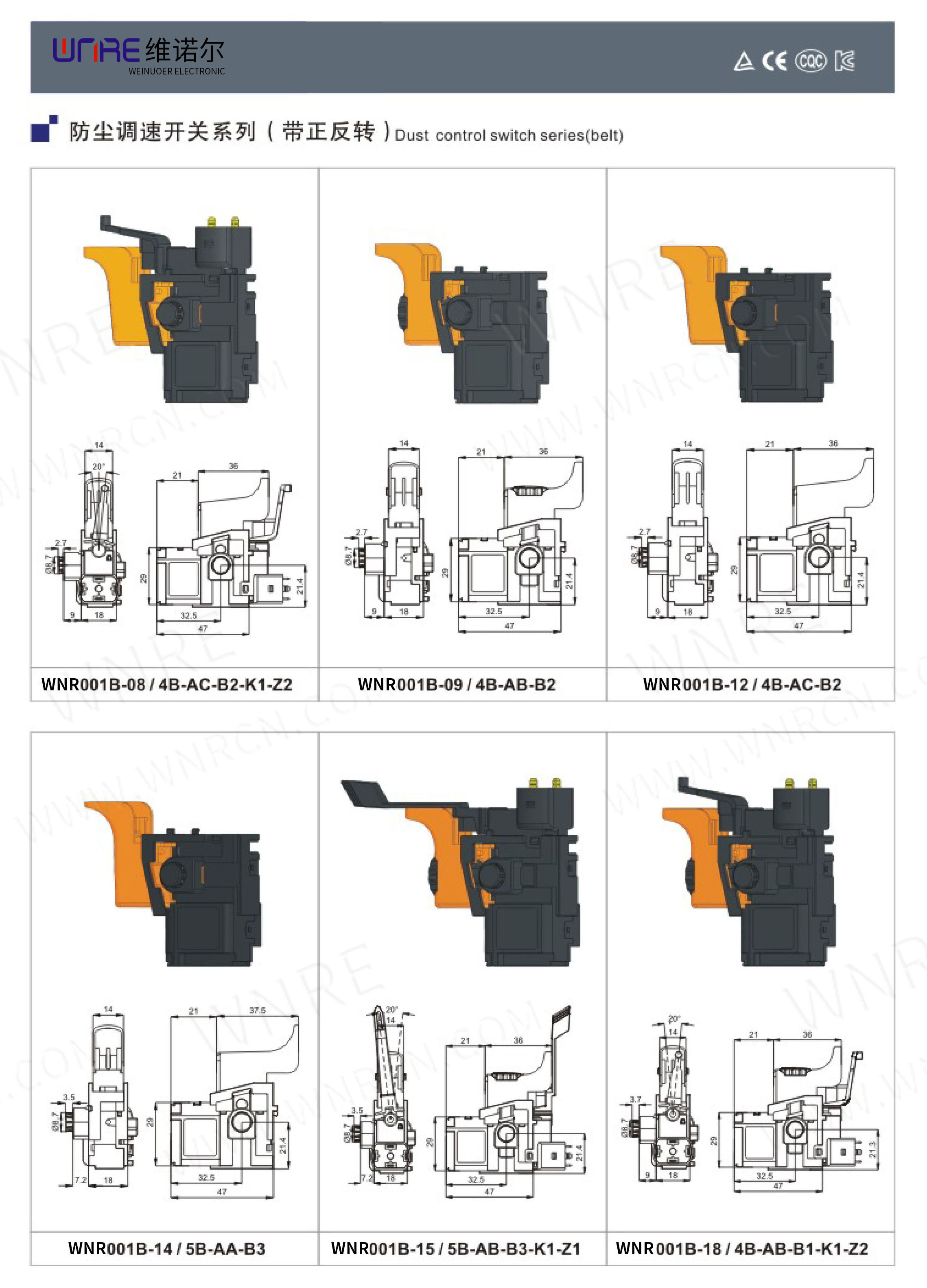

The following are the pictures of our products, for more information, please contact us.
Post time: Jul-17-2021
