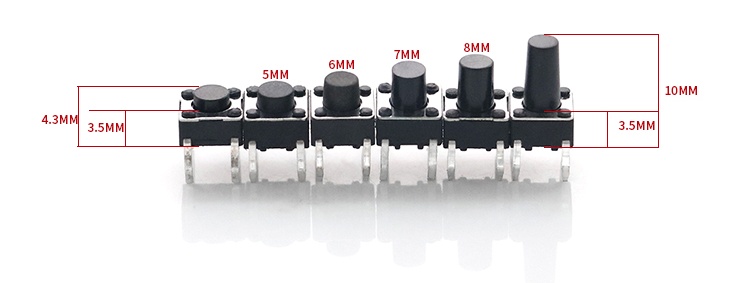

How to use tact switch 6*6 smt correctly? Here are a few of my thoughts.
One, operation method: do not impose strong repeated operation. If further pressure is applied under the plunger already pressed, excessive load weight can cause deformation of the round panel spring and become the cause of poor action. Especially if too much load is applied to the horizontal pressure type, the riveting joint will be damaged, which becomes the cause of switch damage. Therefore, during installation and operation of tACT switch 6×6, please be careful not to attach load weight higher than excessive load weight (29.4N, 1 minute, once). Set the switch in the direction in which the plunger can operate in the vertical direction. Pressing only one side of the plunger, or an oblique opening may result in reduced durability.
Two. About preservation: When saving the patch tACT switch 6×6, in order to prevent terminal discoloration, please do not save the patch in high temperature, high humidity environment, direct sunlight or corrosive gas environment.
Three, dust countermeasures: because there is no sealing structure of the switch, so do not use in places with dust. If necessary, protective measures such as mulch should be considered.
Post time: Oct-25-2021
