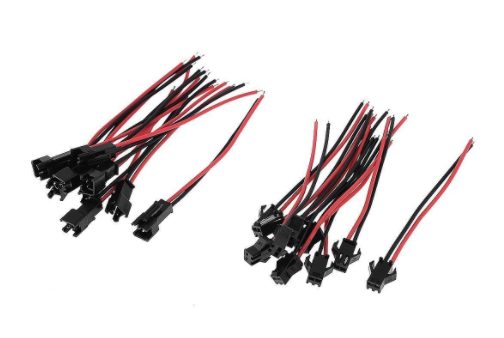

What is a cable connector? Cable connector is a kind of instrument that converts several unconnected cables together. The instrument is very safe and can normally be operated with electricity. And the quality of the components is so strong that they can withstand tens of millions of volts of high pressure.
Main uses of cable connectors
In general, cable connectors are mainly used between various transmission equipment (such as various digital switches, signal transmission between distribution frames and internal connection of photoelectric transmission equipment). Now we can apply it to communication devices that transmit data (including audio, video, electronic communication, etc.). Cable connectors have excellent sheath, which has excellent flame retardant performance. Greatly improves the safety of cable connectors. Now manufacturers are using multi-core cable connectors more convenient for us to set up cable work.
Installation process of cable connectors
1. The cable connector can be disassembled. Disassemble the connector and disassemble it according to the numbers on the cable connector.
2, one end of the cable is skinned, and then it is nailed on the nail shaft plate of the cable connector, and exposed between 20 cm and 30 cm, so that the exposed part of the tilt down and the horizontal direction into 30 degrees to 40 degrees.
3, at this time in the use of our sealant on the cable connector in the middle of the connection for sealing treatment (to prevent leakage in rainy days or work in wet places). After smeared, air dry treatment (under normal circumstances this sealant can be completely solidified between two hours to three hours). After the sealant dries, you can cover the connector’s back end (be sure to pad and seal ring)
4. Then clean up our cable connector with a copper brush. In general, clean up the copper powder in the cable connector and the sheath of the cable. Prevent the occurrence of short circuit or dangerous situation.
5. Connect the internal conductor components, external lightning protection components and internal components of our cable connector, and then install accurately (that is, install in accordance with the above order).
6. Install our inner card slot on our cable connector, and finally inflate it. Be sure to pour a certain amount of dry gas into it. Just keep the air pressure inside above 90%.
