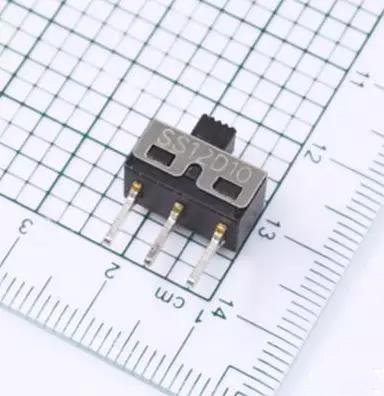

Slide switch is a switch that connects or disconnects the circuit by toggle the switch handle, thus achieving the purpose of switching circuits.

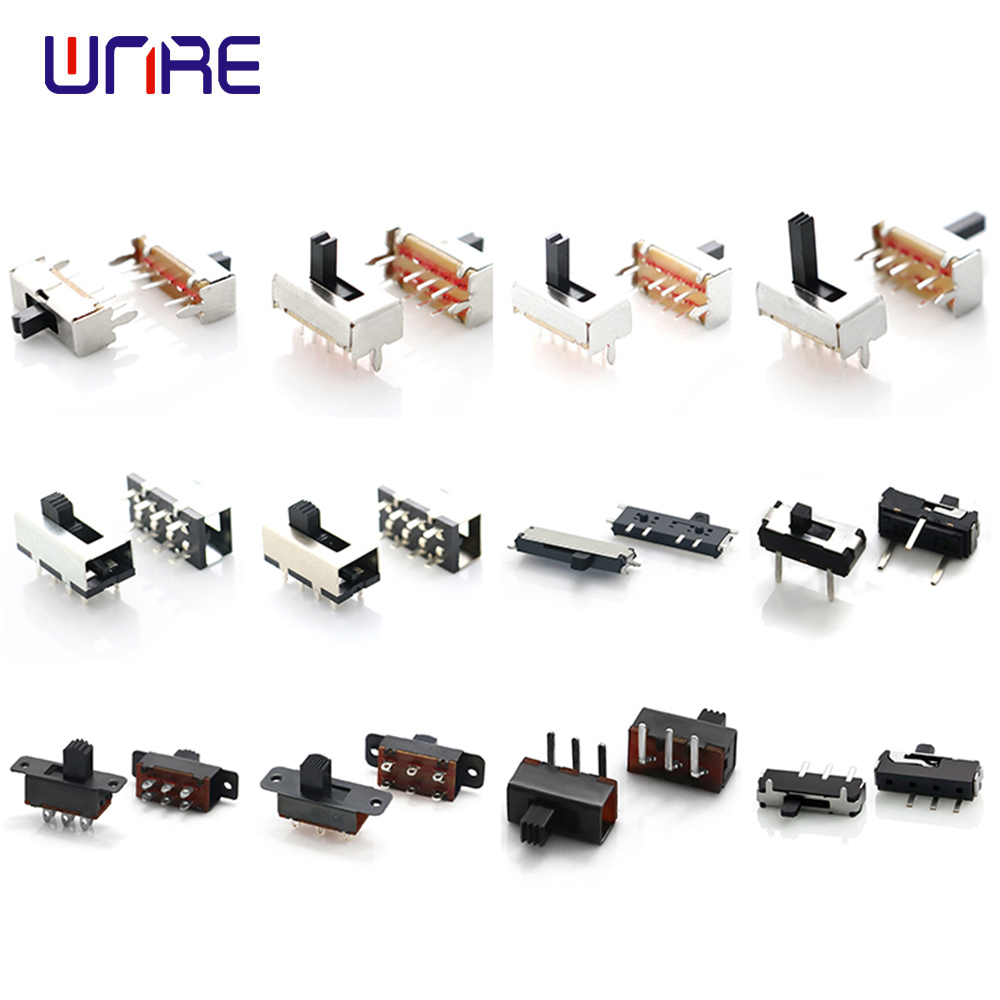

The commonly used toggle switches are unipolar double, unipolar three, bipolar two and bipolar three.
Components of slide switch:
1: the iron shell
2: plastic handle (material: generally POM material, such as fire retardant and high temperature resistance requirements, often choose PA nylon material);
3: Terminal (material: phosphorous copper);
4: insulation bottom plate;
5: Contact chip (material: phosphorous copper);
6: round bead (material: stainless steel);
7: Slingshot (material: bronze)
8: decorative oil (material: red oil or green oil).
Features:
1. With delay, broadening, external synchronization, anti-interference, high reliability, stable working area and self-diagnosis and other intelligent functions.
2. Small size, many functions, long life, high precision, fast response speed, long detection distance and strong anti-light, electrical and magnetic interference ability.
3. The slider has flexible action and stable and reliable performance
It is generally used in low-voltage circuit, mainly widely used in all kinds of instruments/instrument equipment, all kinds of electric toys, fax machines, audio equipment, medical equipment, beauty equipment and other electronic products.
