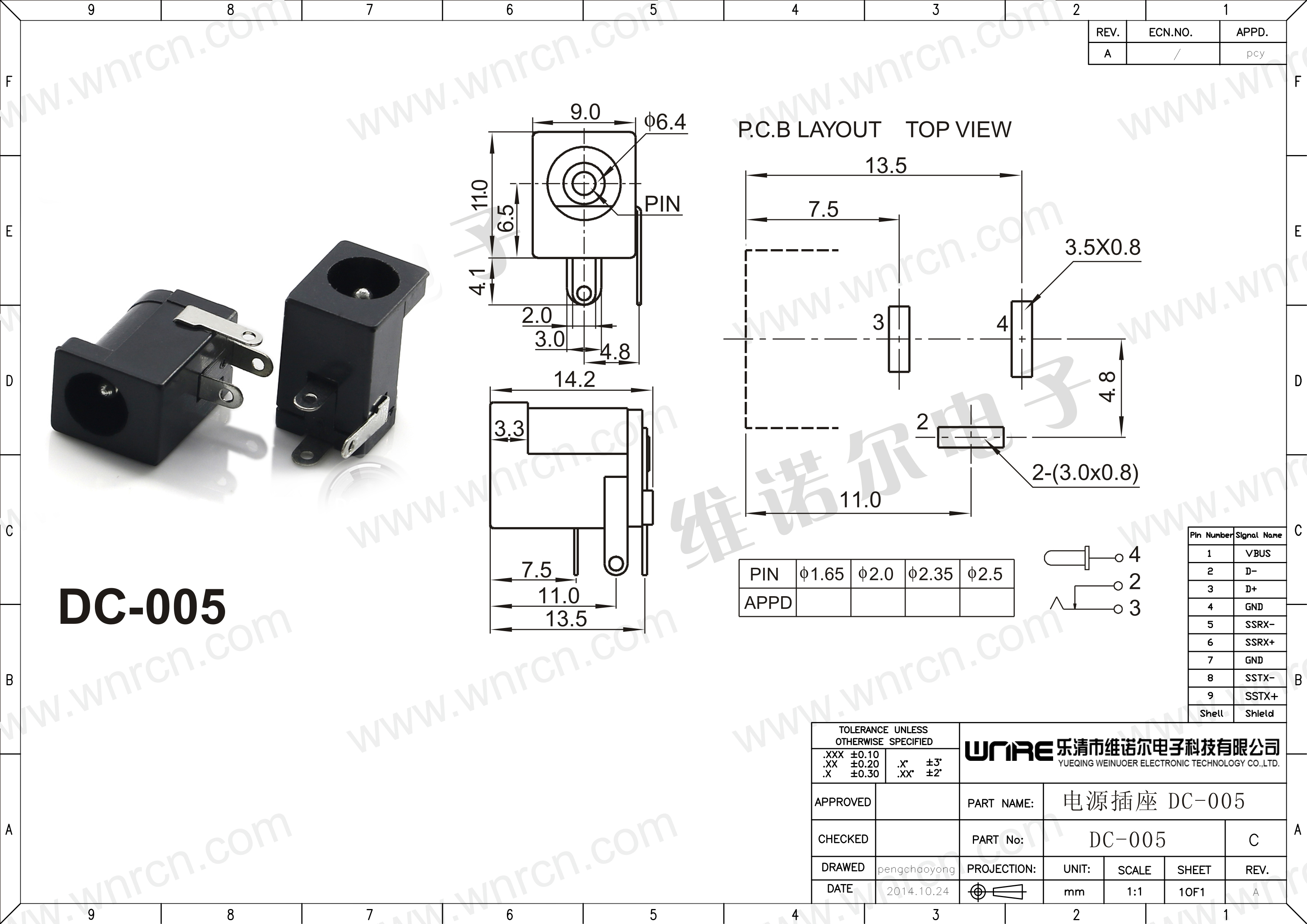

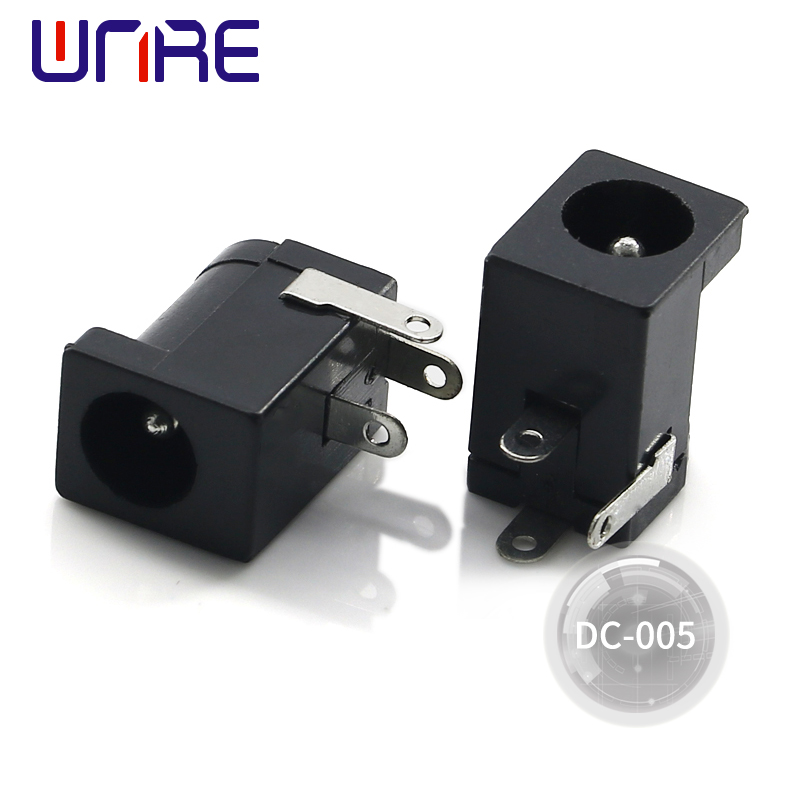

DC Power socket DC-005 female plug, dc jack
Rating: DC 30V 0.5a
Insertion force: 3 to 20N
Needle core diameter: 2.0/2.5
Aperture size: 6.4mm.3 pins
Life span: 5,000 times
Appearance: no obvious damage, crack, rust, etc
DC socket DC-005_ Electrical performance:
Contact impedance: measured below 30 milliohms at a small current of 1KHZ
Insulation resistance: measuring more than 100 megohm for 1 minute with DC500V between terminals and between terminals and shell
Voltage resistance: AC500V(50HZ or 60HZ) is added between the terminals and between the terminals and the shell, and no breakdown phenomenon can be detected for 1 minute
DC socket DC-005_ Mechanical properties:
Inserting and pulling force: use dynamometer to measure inserting and pulling force 5-18N between plug and spring
Terminal strength A 500g static load is applied in one direction at the top of the terminal for 1 minute without any indication of mechanical or electrical damage
