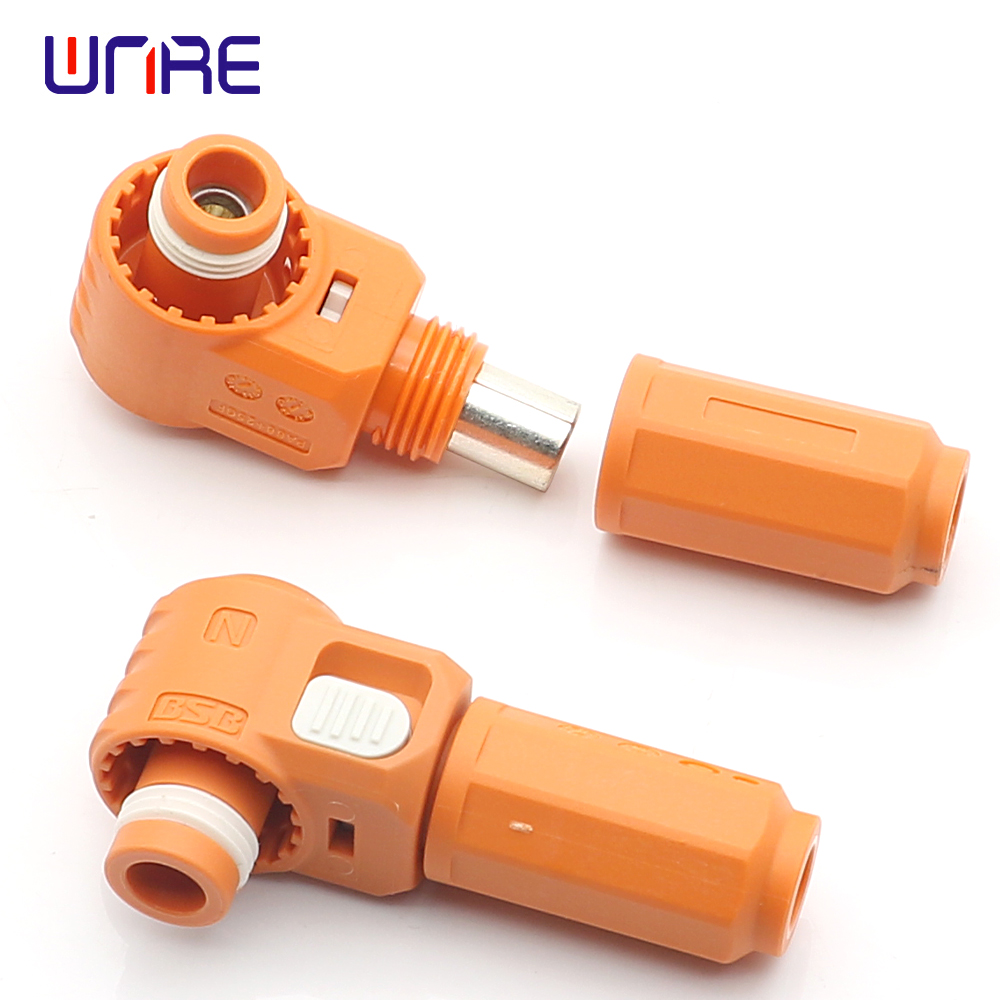

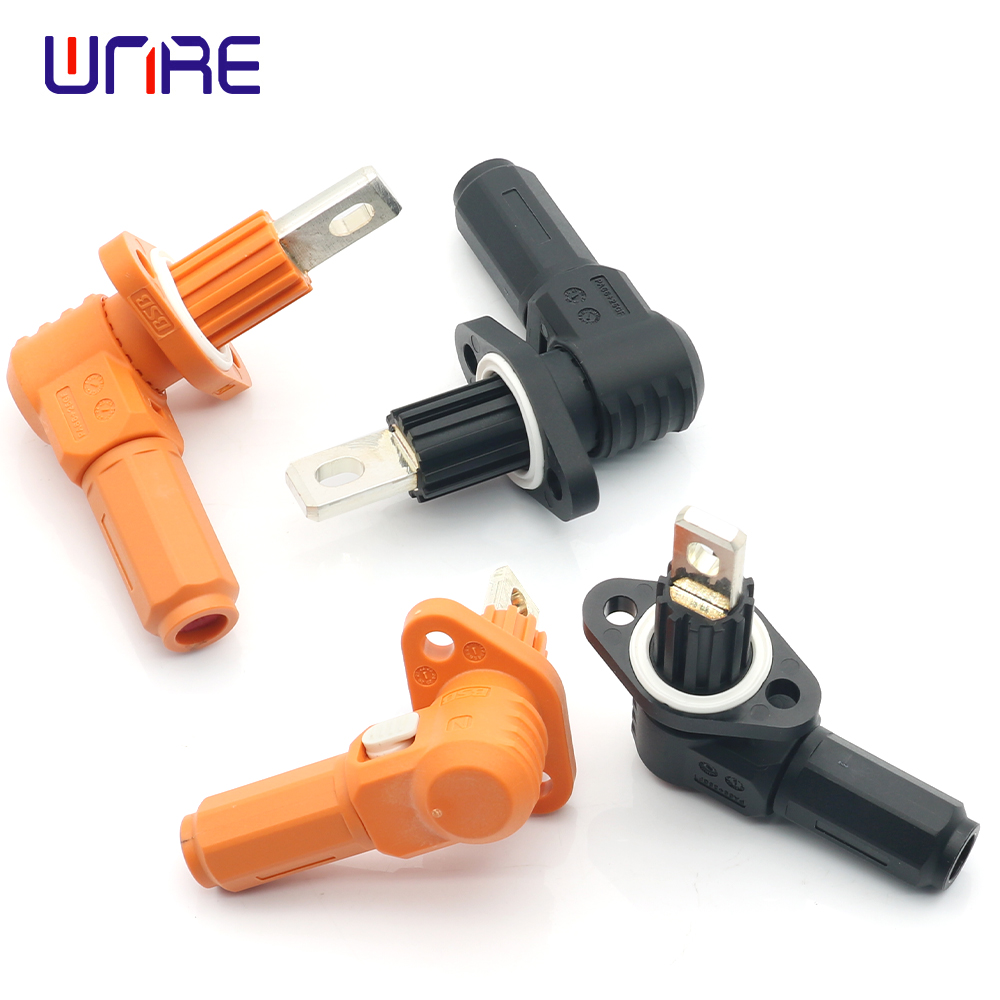

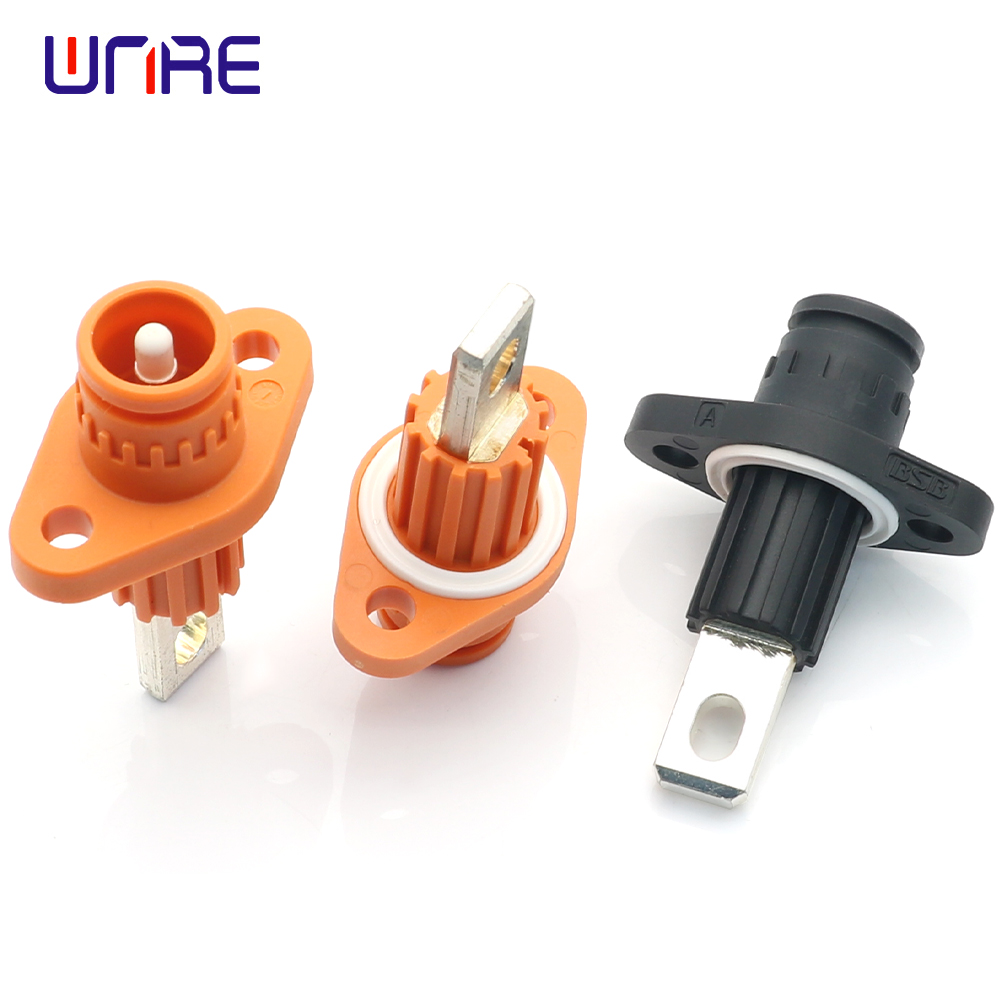

Single Core Quick Plug Energy Storage Connector New Energy Terminal Connector 1500V DC

Short Description:

Package including1 set (plug and socket), orange or black

Product Parameter

Model: E36 energy storage connector

Rated voltage: 1500V/DC

Rated current: 55A (wire 8mm²), 70A (wire 10mm²)

Insulation resistance: 500MΩ / 2000V DC

Voltage requirement: 5000V DC 60S

Contact resistance: 1.5MΩ max

Operating temperature: ‐40℃ ~ 125℃

Use relative humidity: 25℃, 5% ~ 95%

Storage temperature: ‐5℃ ~ 30℃

Salt spray grade: 48H

Protection level: After plugging, meet IP67

Mechanical life: 100 cycles


Product Detail

Product Tags

Note:

1.Please allow ±0-3mm difference due to manual measurement.

2.Due to the effects of shooting, the photos may not reflect the true colors, subject to the actual product.
