XGB-2+2 Male Female Connector 30A Electric Bike Charger Charger Plug Socket
Product Parameter
Model: XGB-2+2
Type: male and female
Wire: 2C*15AWG+2C*22AWG, wire length 500mm
Waterproof class: IP65
Rated current: 10-30A
Contact impedance: Power PIN < 5 mohm; Signal PIN < 10 mohm
Insulation impedance: DC 1000V; 100 m Ω
Voltage resistance: Power PIN 2500VAC; Signal PIN 1000VAC; Leakage current 2mA
Non-point insertion and removal: 5000 times
Insertion force: 2.5-15KG; Extraction force: 4-8KG
Operating temperature range: -15~105℃
Salt spray test 48 hours
Technical requirements
1. The appearance of the product has no color difference, raw edge, missing materials, scratches and other bad
2. All materials used are environmentally friendly and meet ROHS requirements.

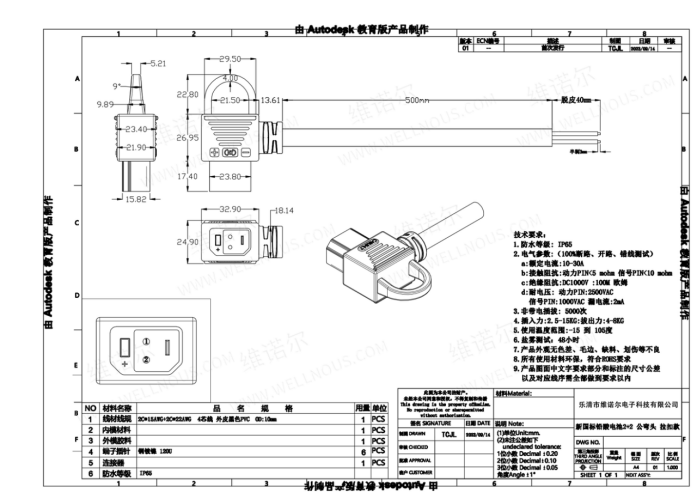

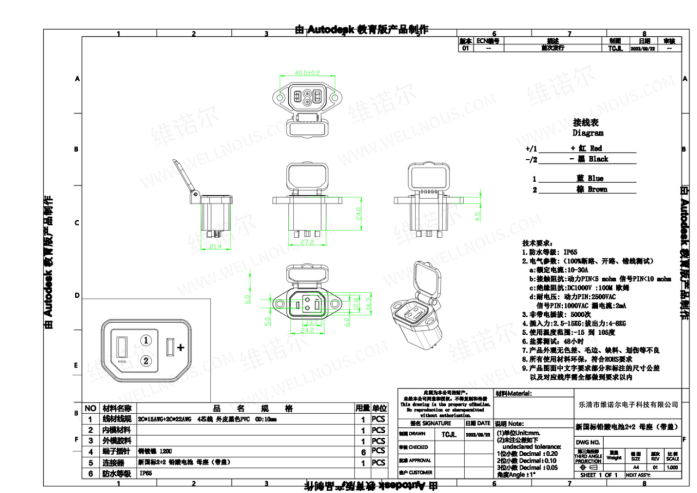

Product Drawing
