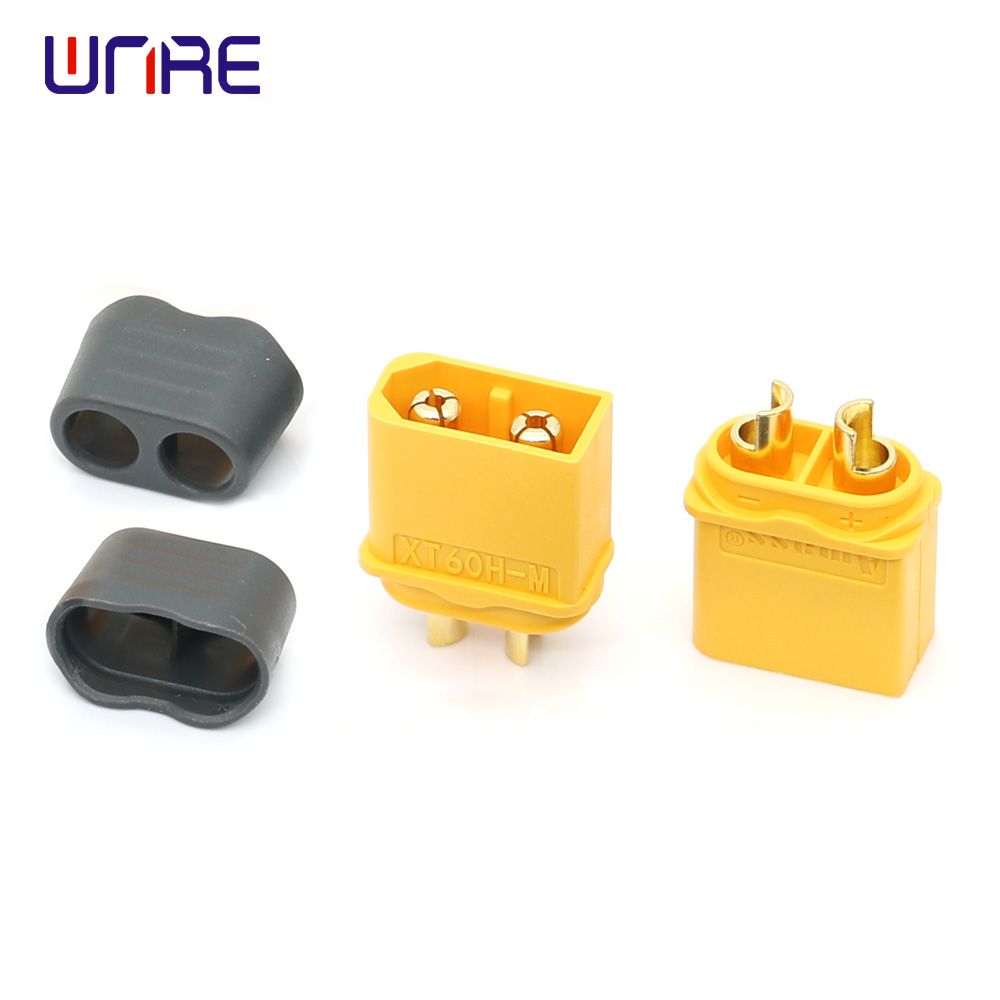

Yellow XT60H-M Plug Connector With Sheath Housing
Product Parameter
Product Model: XT60H-M
Rated Current: 30A MAX（12AWG△＜85℃）
Voltage Resistance: 500V DC
Insulation resistance: ≥2000MΩ
Contact resistance: ≤1.0MΩ
Mechanical life: 100times
Salt Spray: 48h
Protection level: IP40
Operational Temperature: -20℃~120℃
Flame Retardant Rating: UL94 V-0
Outer Hull: PA, YELLOW, BLACK
Pinhole: Aldary，Elecreoplate: Gold Plating
Product characteristics
1. XT60H-M is a classic 180° outbound welded injection molded 2PIN connector with rear cover, which is the standard part for the current power lithium power supply, and the other wired plate design and locking design.
2. This can connecting the lithium battery to the control unit.
Announcements
When in use, do not exceed the rated current and voltage.
Do not use it when external forces are applied to the connector.
Do not use it in a place with high temperature and humidity.
Please use this product with care
Product Drawing
Application Areas
Telecontrolled aircraft
telecar
Remote control ship
Unicycle
Electric vehicle
UAV
Traversal machine
Solar lamp
Balancing car
Electric scooter
Solar lamp
